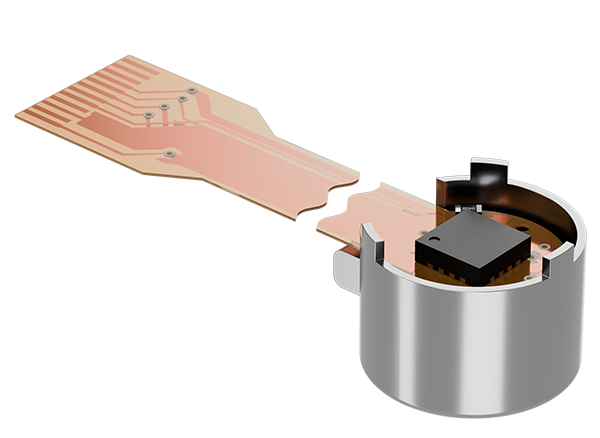

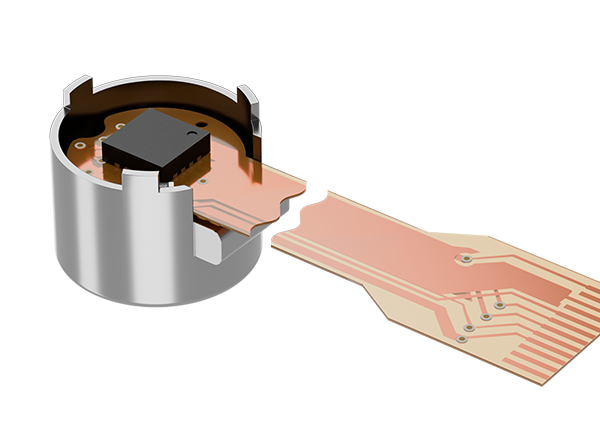

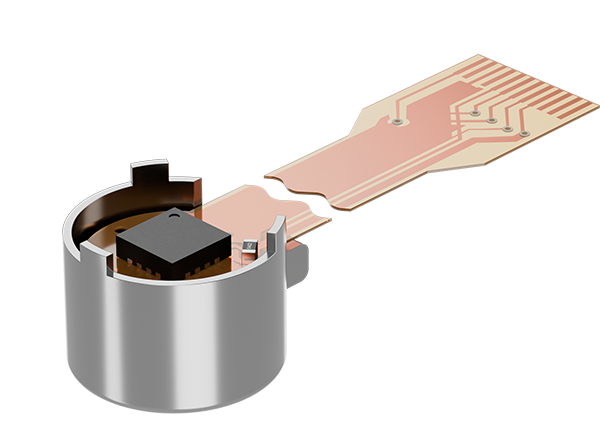

Φ8mm Encoder

PART NO.：CB-ST-8

Pulses per Revolution：1~1024

Encoder Channels：2～3

Square wave：Single-ended ABZ

Current consumption, typical（mA）：10

Supply voltage（V）：3.3—5

Max. speed(rpm)：55000rpm

Contact

Technical Data

Technical Data
Pulses per revolution N 1～1024
Signal output Square wave Single-ended ABZ
Supply voltage UDD 3.3~5 V
Current consumption, typical IDD 10mA
Index Pulse width P0 180 ±45°
Phase shift, channel A to B Φ 90 ±45°
Operating temperature range ﹣40-125℃
Accuracy, typ. ±1
Hysteresis 0.088 °m

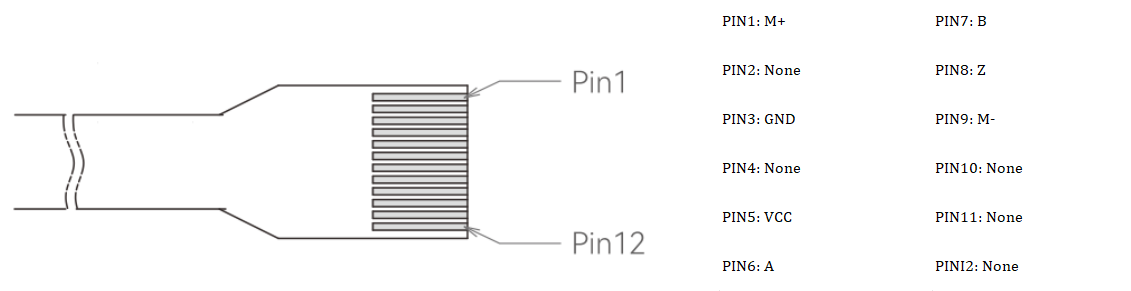

Pin Definition

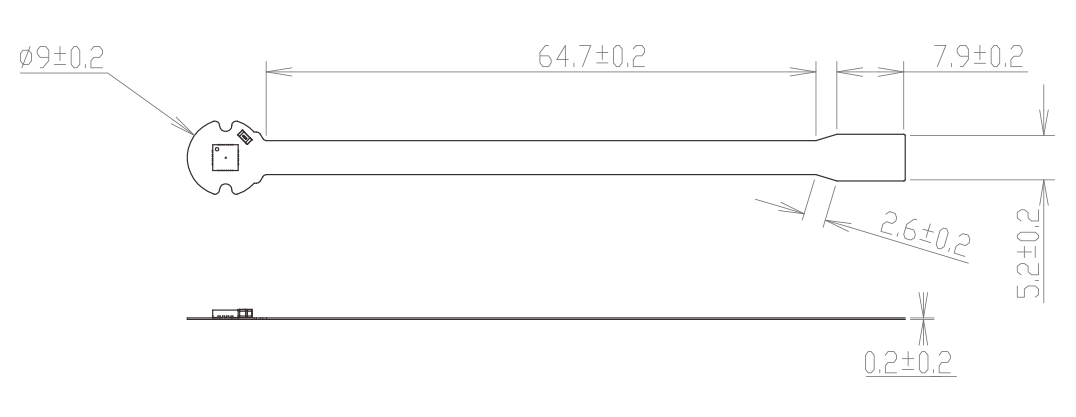

Technical Illustration
