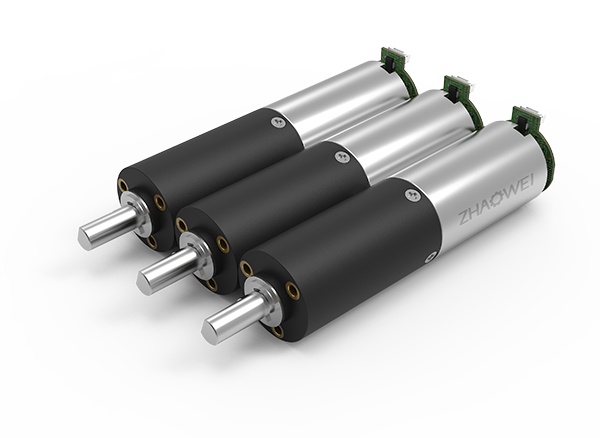

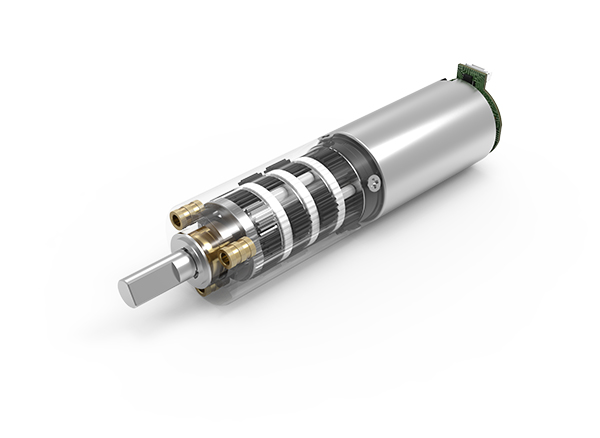

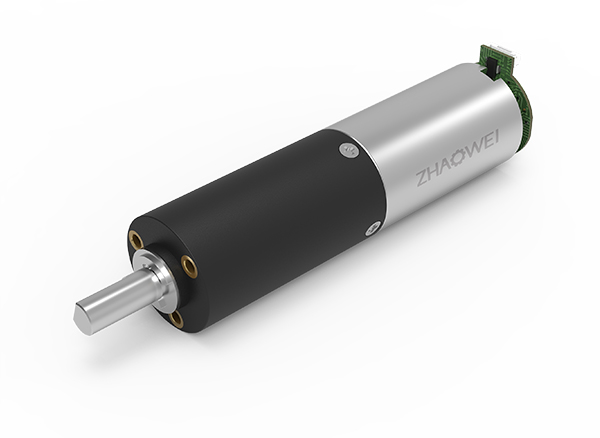

Φ22mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD022022

Diameter (mm):22

Length (mm):19.1~41

Transmittable Power(W):0.5~4.5

Max. Nominal Torque(Nm):0.8

Recommended temperature range(℃):-20~+85

Bearing at output:sliding bearing/rolling bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable power (W) 0.5-4.5 0.5-4.5 0.5-4.5 0.5-4.5
Max. intermittent transmittable power(W) 4.5 4.5 4.5 4.5
Max. continuous torque (Nm) 0.8000 0.8000 0.8000 0.8000
Max. intermittent torque (Nm) 2.0000 2.0000 2.0000 2.0000
Max. efficiency (%) 85 73 65 58
Average backlash no load (°) ≤3 ≤3 ≤3 ≤3
Max. axial load (dynamic)(N) 80 80 80 80
Max. radial load(4mm from flange)(N) Oil-Impregnated Bearing:≤120N   Rolling Bearing:≤170N
Gearbox Length L1(mm) 19.1 26.4 33.7 41
Weight(G) 53 65 76 88

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD022022-4 24.0 1886 100 1675 295 160 15.7 57.5 8000 20000 4 19.1
ZWBPD022022-6 24.0 1258 100 1117 295 240 23.5 8000 20000 6
ZWBPD022022-16 24.0 472 110 419 295 512 50.2 64.8 8000 20000 16 26.4
ZWBPD022022-24 24.0 314 110 279 295 768 75.3 8000 20000 24
ZWBPD022022-36 24.0 210 110 186 295 1152 113.0 8000 20000 36
ZWBPD022022-64 24.0 118 120 105 295 1350 132.4 72.1 8000 20000 64 33.7
ZWBPD022022-96 24.0 79 120 70 295 2025 198.6 8000 20000 96
ZWBPD022022-144 24.0 52 120 47 295 3038 297.9 8000 20000 144
ZWBPD022022-216 24.0 35 120 31 295 4556 446.8 8000 20000 216
ZWBPD022022-256 24.0 28 120 26 300 4050 397.2 79.4 8000 20000 256 41
ZWBPD022022-384 24.0 19 120 17 300 5000 490.4 8000 20000 384
ZWBPD022022-576 24.0 13 120 12 300 5000 490.4 8000 20000 576
ZWBPD022022-864 24.0 8 120 8 300 5000 490.4 8000 20000 864
ZWBPD022022-1296 24.0 6 120 5 300 4500 441.3 8000 20000 1296

* Above specifications are subject to change without notice, just for reference and customizable according to requirements.

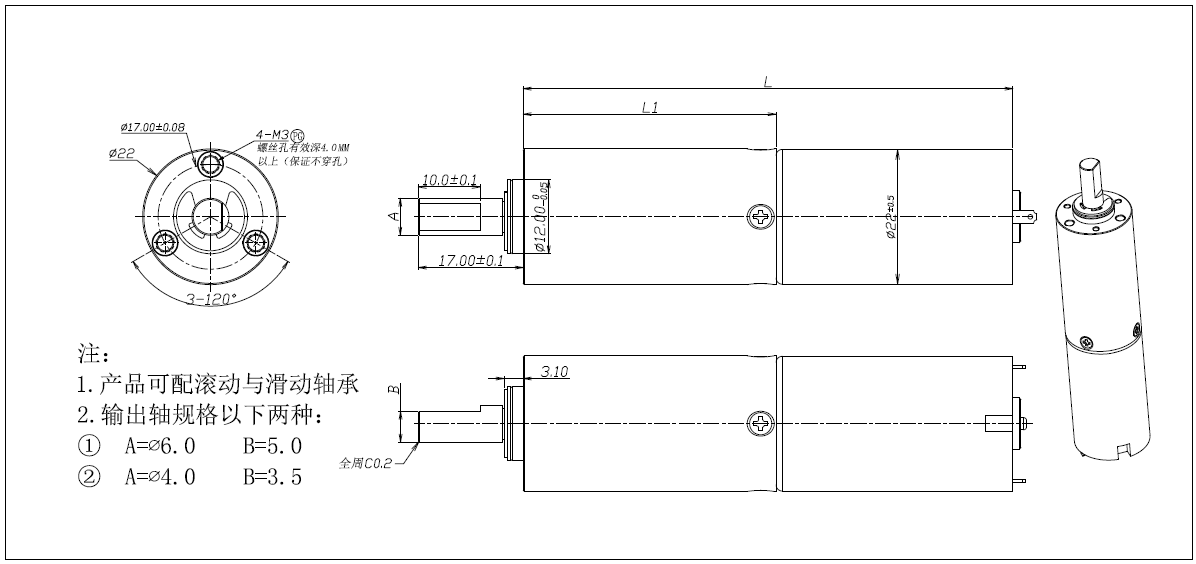

Technical Illustration
