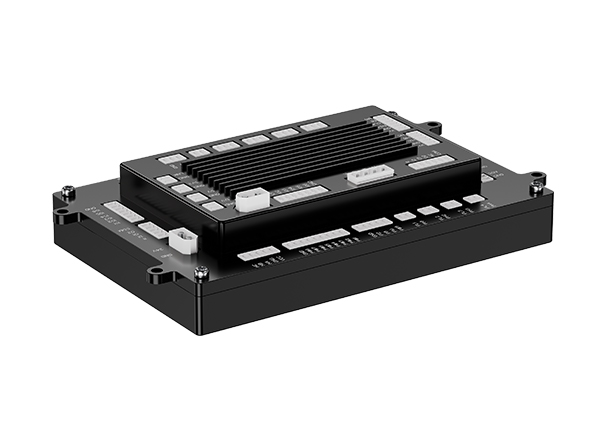

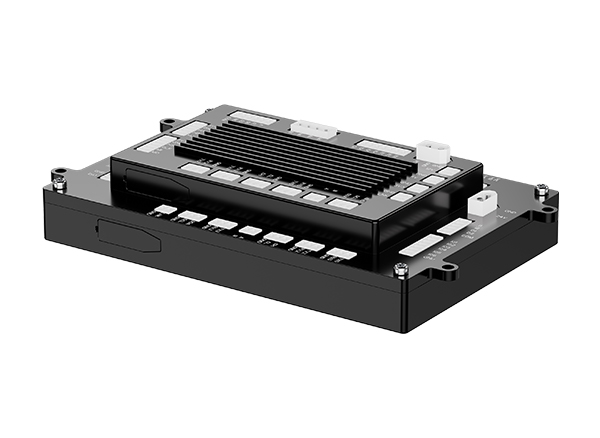

General-Purpose Motor Drive Board and Data Acquisition Board

Weight:1kg

Rated Voltage:24V DC

Max Current:2A

Operating Temperature:-30~25℃

Compatible Motors:Brushed DC motors, stepper motors, Sensored Brushless DC Motor, Sensorless Brushless DC Motor

Sensors Supported:Hall sensors, ABZ/UVZ incremental magnetic encoders, IIC magnetic encoders, SPI magnetic encoders, PWM magnetic encoders

Communication Interfaces:Standard IO, IIC, RS485, RS232, SPI, USART, PLC IO, CAN, LINK

Technical Data

Compatible Motors The universal driver supports the control of various motor types up to 300W, including: Brushed DC motors, stepper motors, Sensored Brushless DC Motor, Sensorless Brushless DC Motor
Sensors Supported Supports various position sensors, such as: Hall sensors, ABZ/UVZ incremental magnetic encoders, IIC magnetic encoders, SPI magnetic encoders, PWM magnetic encoders
Communication Interfaces Supports multiple communication protocols, including: Standard IO, IIC communication, RS485, RS232, SPI, USART, PLC IO, CAN, LINK
Signal Quality Detection Hall signal quality: Low-level voltage, high-level voltage, frequency, duty cycle, phase difference Power and Voltage Detection Standby current detection: mA-level Low power consumption detection: μA-level PWM signal detection
Electrical Data Acquisition Board Power Interface (14) Driver Power Interface (6): Supports 5–48V input; motor drive voltage adapts to input voltage
Rated Voltage: 24V DC
Maximum Current: 2A
(1)12V Power Output Interface: Supports 0.5A current for external devices
(2)5V Power Output Interface: Supports 0.2A current for external devices
(3)3.3V Power Output Interface: Supports 0.2A current for external devices
Protection Reverse polarity protection for input Overcurrent protection ESD static protection on all ports
Operating temperature -30~25℃
Communication Interfaces Standard IO, IIC, RS485, RS232, SPI, USART, PLC IO, CAN, LINK
Weight 1000G

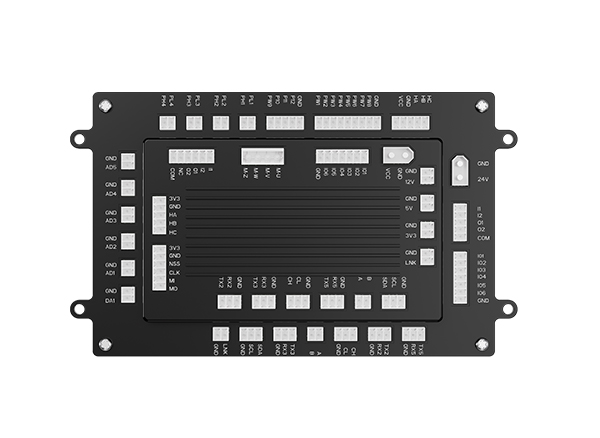

Data Acquisition Board Interface Definitions

(1)DAC Output Interface: 0–10V (13)Hall Interface: Supports 3–24V Hall level input detection; provides 3–24V adjustable output for Hall power supply with stepless regulation
(2)ADC Detection Interface: 0~5V (14)Power Interface: Rated voltage 24V DC, maximum current 2A
(3)ADC Detection Interface: 0~12V (15)PLC Interface: Supports 2 channels of 24V PLC signal input and 2 open-collector outputs with 0.5A drive capability, max voltage 150V
(4)ADC Detection Interface: 0~24V (16)Extended IO: 6 channels, 3.3V level
(5)ADC Detection Interface: 0~36V (17)USART Communication Interface: 5V level
(6)ADC Detection Interface: 0~48V (18)RS-232 Communication Interface
(7)PWM Signal Detection Channel 4: Half-bridge driver, MOSFET upper GS PWM detection, max voltage ≤20V (19)CAN Bus Interface
(8)PWM Signal Detection Channel 3:  Half-bridge driver, MOSFET upper GS PWM detection, max voltage ≤20V (20)RS-485 Communication Interface
(9)PWM Signal Detection Channel 2: Half-bridge driver, MOSFET upper GS PWM detection, max voltage ≤20V (21)USART Communication Interface: 3.3V level
(10)PWM Signal Detection Channel 1: Half-bridge driver, MOSFET upper GS PWM detection, max voltage ≤20V (22)IIC Communication Interface
(11)PWM Signal Detection Channel 4: MOSFET lower GS PWM detection, max voltage ≤60V (23)LINK Communication Interface
(12)PWM Signal Detection Channel 8: MCU PWM detection, max voltage ≤60V (24)TF Memory Card Slot

Note: The RS-232, 3.3V USART, and 5V USART communication interfaces cannot operate simultaneously; only one of the three can be selected at a time.

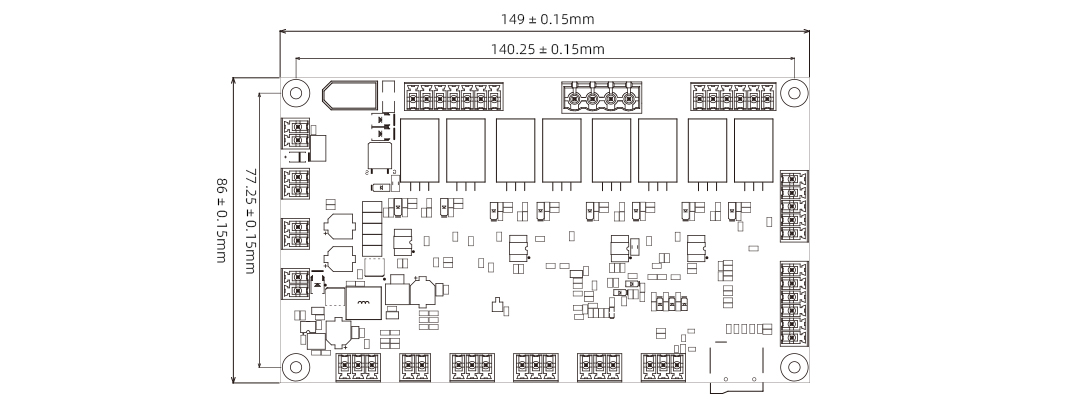

Driver Interface Definitions

(1)SPI Communication Interface (9)3.3V Power Output Interface: Supports 0.2A current for external devices
(2)Hall Detection Interface (10)LINK Communication Interface
(3)PLC Interface: Supports 2 channels of 24V PLC signal input and 2 open-collector outputs with 0.5A drive capability, max voltage 150V (11)IIC Communication Interface
(4)Motor Interface: Supports brushed DC motors, stepper motors, and three-phase BLDC motors (12)RS-485 Communication Interface
(5)Extended IO: 6 channels, 3.3V level (13)USART Communication Interface: 5V level
(6)Power Interface: Supports 5–48V input; motor drive voltage adapts to input voltage (14)CAN Bus Interface
(7)12V Power Output Interface: Supports 0.5A current for external devices (15)USART Communication Interface: 3.3V level
(8)5V Power Output Interface: Supports 0.2A current for external devices (16)RS-232 Communication Interface
(17)TF Memory Card Slot

Note: The RS-232, 3.3V USART, and 5V USART communication interfaces cannot operate simultaneously; only one of the three can be selected at a time.
