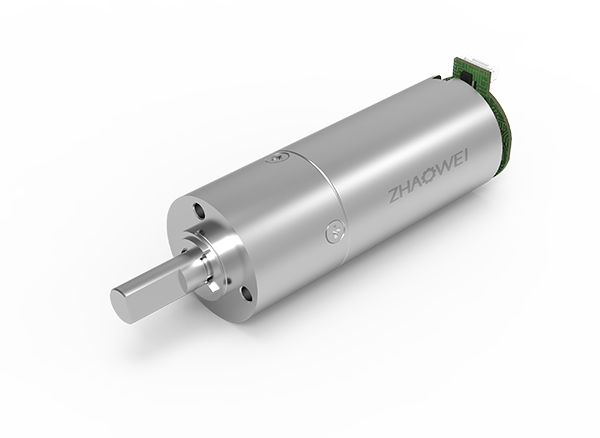

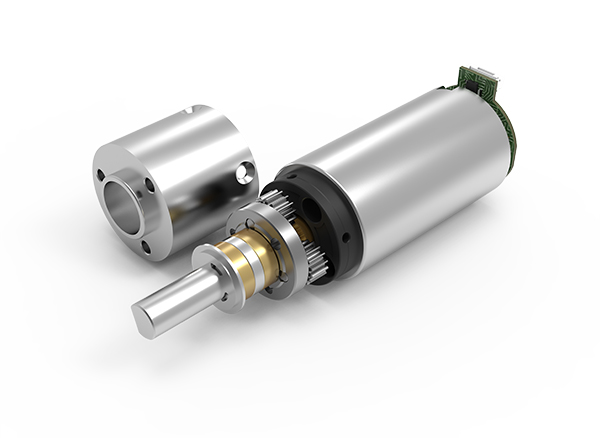

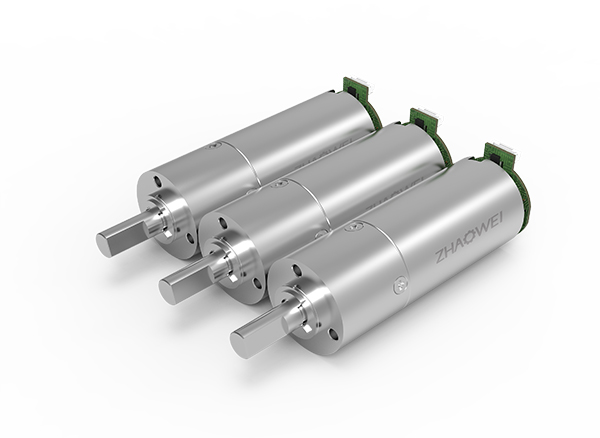

Φ22mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD022022

Diameter (mm):22

Length (mm):19.1~41

Transmittable Power(W):0.5~4.5

Max. Nominal Torque(Nm):1.5

Recommended temperature range(℃):-30~+100

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable Power (W) 0.5~4.5 0.5~4.5 0.5~4.5 0.5~4.5
Max. intermittent transmittable power(W) 4.5 4.5 4.5 4.5
Max. Nominal  Torque(Nm) 1.5000 1.5000 1.5000 1.5000
Max. Intermittent Torque (Nm) 3.6000 3.6000 3.6000 3.6000
Max. efficiency (%) 90 85 80 75
Average backlash no load (°) ≤2 ≤2 ≤2 ≤2
Max. axial load (dynamic)(N) 40 40 40 40
Max. radial load(4mm from flange)(N) Oil-Impregnated Bearing:≤120N   Rolling Bearing:≤170N
Gearbox Length L1(mm) 19.1 26.4 33.7 41

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD022022-4 24 1886.36 100 1675.00 295 160 15.69 57.5 15000 36000 4 19.1
ZWBMD022022-6 24 1257.58 100 1116.67 295 240 23.54 15000 36000 6
ZWBMD022022-16 24 471.59 110 418.75 295 512 50.21 64.8 15000 36000 16 26.4
ZWBMD022022-24 24 314.39 110 279.17 295 768 75.32 15000 36000 24
ZWBMD022022-36 24 209.60 110 186.11 295 1152 112.98 15000 36000 36
ZWBMD022022-64 24 117.90 120 104.69 295 1350 132.39 72.1 15000 36000 64 33.7
ZWBMD022022-96 24 78.60 120 69.79 295 2025 198.59 15000 36000 96
ZWBMD022022-144 24 52.40 120 46.53 295 3037.5 297.89 15000 36000 144
ZWBMD022022-216 24 34.93 120 31.02 295 4556.25 446.83 15000 36000 216
ZWBMD022022-256 24 28.19 120 26.17 300 4050 397.18 79.4 15000 36000 256 41
ZWBMD022022-384 24 18.80 120 17.45 300 6075 595.78 15000 36000 384
ZWBMD022022-576 24 12.53 120 11.63 300 9112.5 893.66 15000 36000 576
ZWBMD022022-864 24 8.35 120 7.75 300 12000 1176.84 15000 36000 864
ZWBMD022022-1296 24 5.57 120 5.17 300 10000 980.70 15000 36000 1296

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

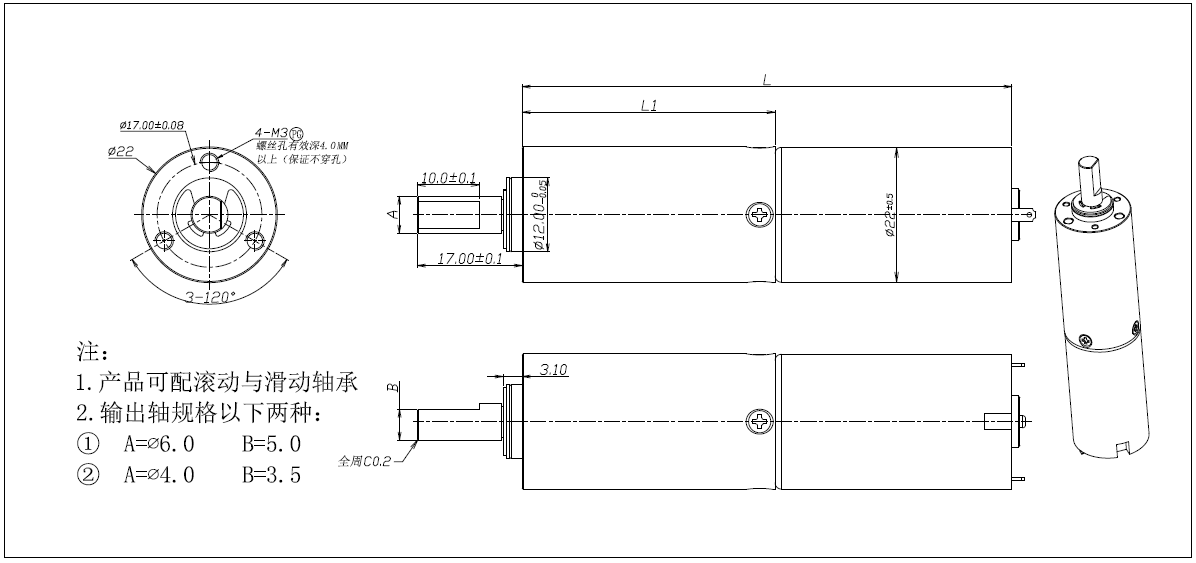

Technical Illustration
