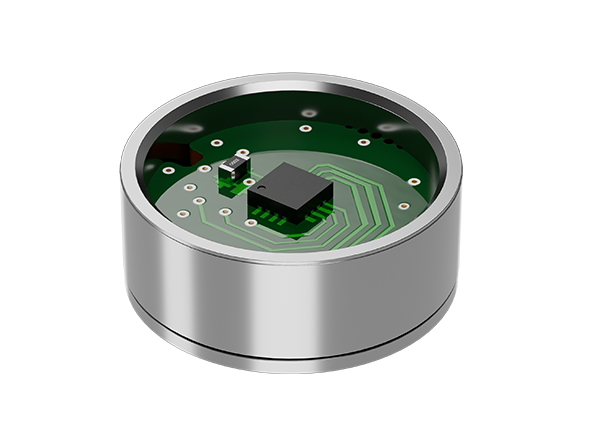

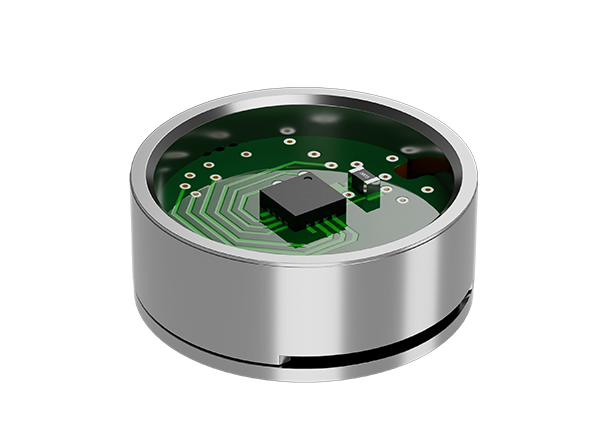

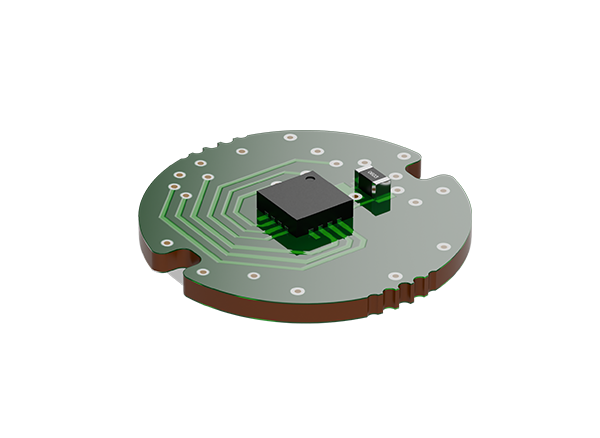

Φ22mm Encoder

PART NO.:CB-ST-22

Pulses per revolution:1~1024

Encoder channels:2~3

Square wave:Single-ended ABZ or Differential ABZ/UVW

Current consumption, typical(mA):10

Supply voltage(V):3.3—5

Max. speed(rpm):55000

Technical Data

Technical Data
Pulses per revolution N 1~1024
Signal output Square wave Differential ABZ/UVW
Single-ended ABZ
Supply voltage UDD 3.3~5 V
Current consumption, typical IDD 10mA
Index Pulse width P0 180 ±45°
Phase shift, channel A to B Φ 90 ±45°
Operating temperature range -40~125℃
Accuracy, typ. ±1
Hysteresis 0.088 °m

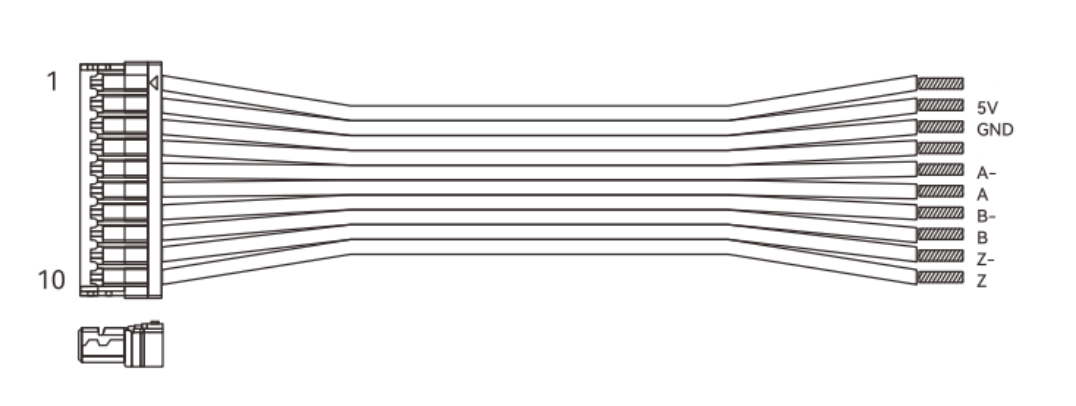

Pin Definition

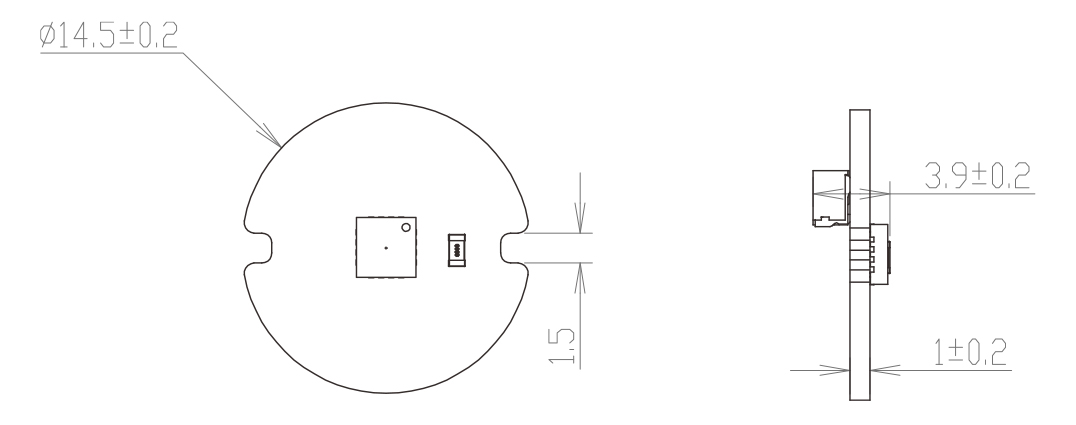

Technical Illustration
