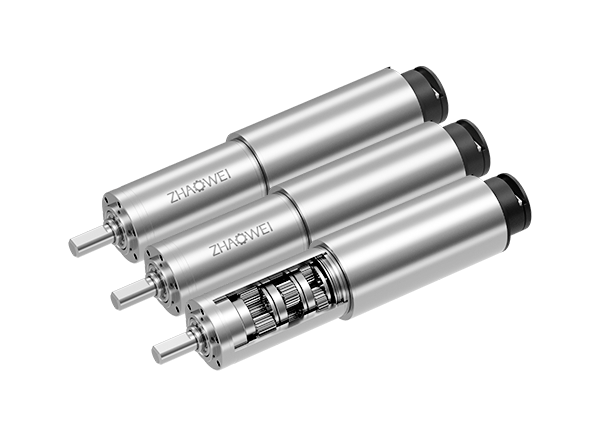

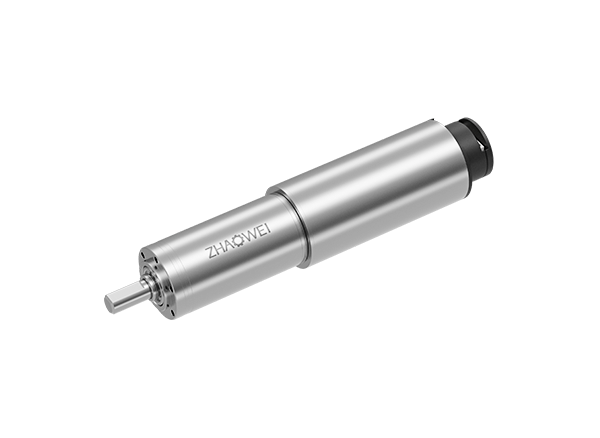

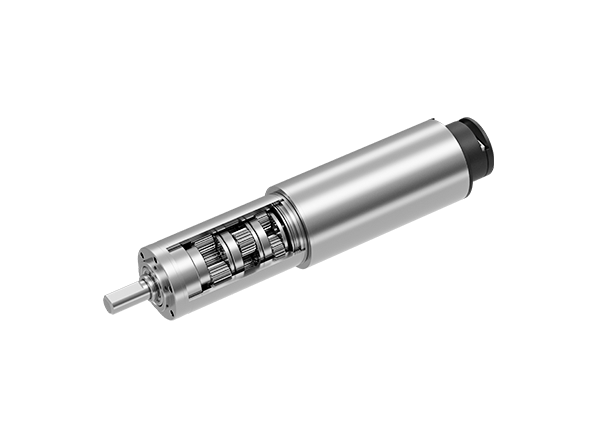

Φ19mm Planetary Gearbox (SMD Series)

PART NO.:ZWSMD019019

Diameter (mm):19

Length (mm):29.9…41

Max. Transmittable Power (W) :15

Max. Continuous Torque (Nm):2

Max. Continuous Input Speed(rpm):14000

Recommended Temperature Range(℃):-30…+100

Bearing at Output:ball bearing

Gearbox Technical Data

Number of stages 2 3 4
Reduction Ratio 16,21, 26,28, 35 62,83, 103,111, 138,150, 172,186,  231 243,326,406, 439,546,590, 679,734,794, 913,987,1135, 1227,1526
Max. continuous transmittable Power (W) 15 7 2
Max. intermittent transmittable power(W) 19 9 3
Max. continuous torque (Nm) 0.9 1.6 2
Max. intermittent torque (Nm) 1.15 2 2.5
Max. continuous input speed (rpm) 10000 12000 14000
Max. intermittent input speed (rpm) 12500 15000 17500
Max. efficiency (%) 80 70 60
Average backlash no load (°) 0.7 0.7 0.7
Max. axial load (dynamic)(N) 40 40 40
Max. radial load(4mm from flange)(N) 100 120 120
Gearbox Length L1(mm) 29.9 37 41
Weight(G) 40.2 60.2 62.2

* Note: Data above does not include the motor. Specifications can be customized per customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
(mm)
Gearbox Nominal Torque
(NM)
Gearbox Max. Intermittent Torque
(NM)
Reduction Ratio Gearbox Length L1
(mm)
No-Load Speed
(rpm)
No-Load Current
(mA max)
Load Speed
(rpm)
Load Current
(mA Max)
Torque
(NM)
ZWSMD019019-16 12 513 200 331 1.5 0.126 60.9 0.9 1.15 16 29.9
ZWSMD019019-21 12 390 200 252 1.5 0.165 21
ZWSMD019019-26 12 315 200 204 1.5 0.204 26
ZWSMD019019-28 12 293 200 189 1.5 0.220 28
ZWSMD019019-35 12 234 200 151 1.5 0.275 35
ZWSMD019019-44 12 186 200 120 1.5 0.345 44
ZWSMD019019-62 12 132 250 85 1.6 0.426 68 1.6 2 62 37
ZWSMD019019-83 12 99 250 64 1.6 0.570 83
ZWSMD019019-103 12 80 250 51 1.6 0.707 103
ZWSMD019019-111 12 74 250 48 1.6 0.762 111
ZWSMD019019-138 12 59 250 38 1.6 0.948 138
ZWSMD019019-150 12 55 250 35 1.6 1.030 150
ZWSMD019019-172 12 48 250 31 1.6 1.181 172
ZWSMD019019-186 12 44 250 28 1.6 1.277 186
ZWSMD019019-231 12 35 250 23 1.6 1.586 231
ZWSMD019019-243 12 34 250 22 1.6 1.600 243
ZWSMD019019-326 12 25 300 16 1.7 2.500 72 2 2.5 326 41
ZWSMD019019-406 12 20 300 13 1.7 2.500 406
ZWSMD019019-439 12 19 300 12 1.7 2.500 439
ZWSMD019019-546 12 15 300 10 1.7 2.500 546
ZWSMD019019-590 12 14 300 9 1.7 2.500 590
ZWSMD019019-679 12 12 300 8 1.7 2.500 679
ZWSMD019019-734 12 11 300 7 1.7 2.500 734
ZWSMD019019-794 12 10 300 7 1.7 2.500 794
ZWSMD019019-913 12 9 300 6 1.7 2.500 913
ZWSMD019019-987 12 8 300 5 1.7 2.500 987
ZWSMD019019-1135 12 7 300 5 1.7 2.500 1135
ZWSMD019019-1227 12 7 300 4 1.7 2.500 1227
ZWSMD019019-1526 12 5 300 3 1.7 2.500 1526

* The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

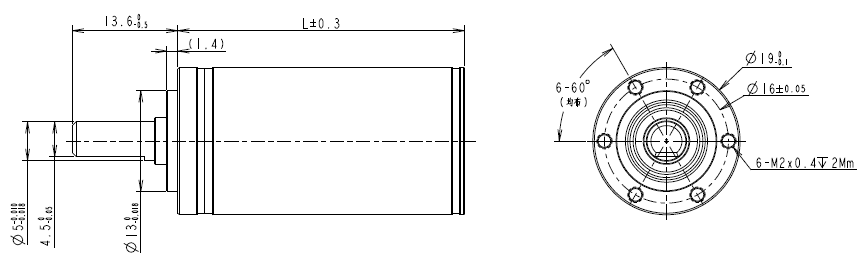

Technical Illustration
