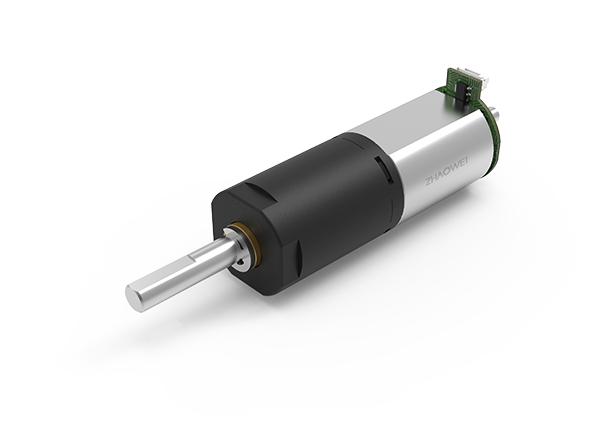

Φ12mm Planetary Gearbox (PD Series)

PART NO.:ZWPD012012

Diameter (mm):12

Length (mm):9.5~20.9

Transmittable Power(W):0.18

Max. Nominal Torque(Nm):0.0196~0.0833

Recommended temperature range(℃):-10~+65

Bearing at output:sliding bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable Power (W) 0.18 0.18 0.18 0.18
Max. intermittent transmittable power(W) 0.38 0.38 0.38 0.38
Max. continuous torque (Nm) 0.0196 0.0392 0.0588 0.0833
Max. intermittent torque (Nm) 0.049 0.0784 0.1176 0.1666
Max. efficiency (%) 85 68 55 46
Average backlash no load (°) 3 3 3 3
Gearbox Length L1(mm) 9.5 13.3 17.1 20.9
Weight(G) 23 23 23 23

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWPD012012-4 3.0 2881 85 2600 145 6 0.6 24.5 200 500 4 9.5
ZWPD012012-6 3.0 1921 85 1733 145 10 1.0 200 500 6
ZWPD012012-16 3.0 707 90 650 145 18 1.8 28.3 400 800 16 13.3
ZWPD012012-24 3.0 471 90 433 145 27 2.6 400 800 24
ZWPD012012-36 3.0 314 90 289 145 41 4.0 400 800 36
ZWPD012012-64 3.0 172 90 163 150 54 5.3 32.1 600 1200 64 17.1
ZWPD012012-96 3.0 115 90 108 150 81 7.9 600 1200 96
ZWPD012012-144 3.0 76 90 72 150 122 11.9 600 1200 144
ZWPD012012-216 3.0 51 90 48 150 182 17.9 600 1200 216
ZWPD012012-256 3.0 43 95 41 150 162 15.9 35.9 850 1700 256 20.9
ZWPD012012-384 3.0 29 95 27 150 243 23.8 850 1700 384
ZWPD012012-576 3.0 19 95 18 150 365 35.7 850 1700 576
ZWPD012012-864 3.0 13 95 12 150 547 53.6 850 1700 864
ZWPD012012-1296 3.0 8 95 8 150 820 80.4 850 1700 1296

* Above specifications are subject to change without notice, just for reference and customizable according to requirements.

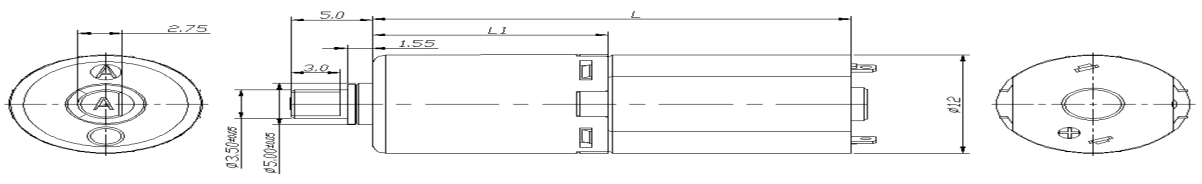

Technical Illustration
