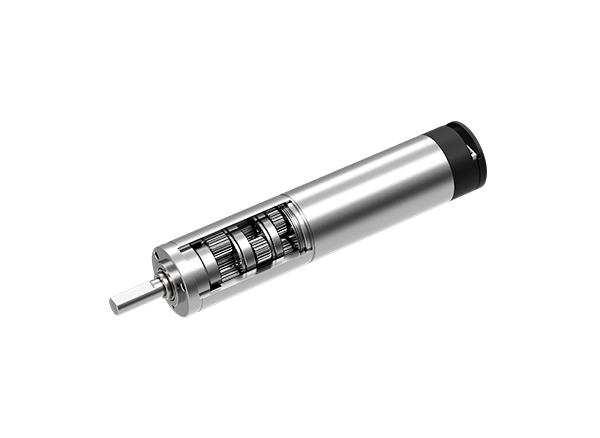

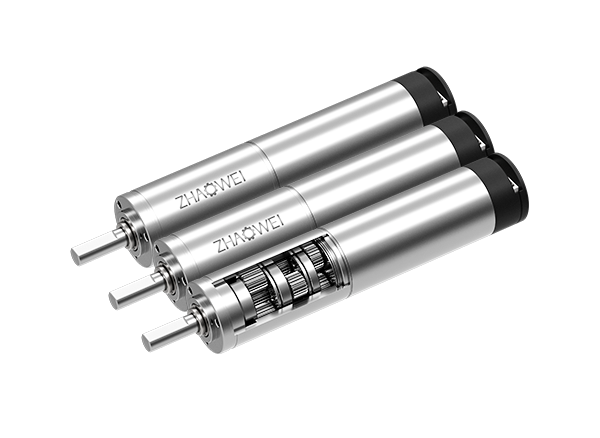

Φ16mm Planetary Gearbox (SMD Series)

PART NO.:ZWSMD016016

Diameter (mm):16

Length (mm):25.8…35.7

Max. Transmittable Power (W) :8

Max. Continuous Torque (Nm):0.9

Max. Continuous Input Speed(rpm):16000

Recommended Temperature Range(℃):-30…+100

Bearing at Output :ball bearing

Gearbox Technical Data

Number of stages 2 3 4
Reduction Ratio 16,21,26,28,35,44 62,83, 103,111,138,150,172,186,231 243,326,406, 439,546,590, 679,734,794, 913,987,1135, 1227,1526
Max. continuous transmittable Power (W) 8 4 1.5
Max. intermittent transmittable power(W) 10 4.4 1.5
Max. continuous torque (Nm) 0.55 0.8 0.9
Max. intermittent torque (Nm) 0.7 1 1.1
Max. continuous input speed (rpm) 12000 14000 16000
Max. intermittent input speed (rpm) 15000 17500 20000
Max. efficiency (%) 80 70 60
Average backlash no load (°) 0.5 0.5 0.5
Max. axial load (dynamic)(N) 30 30 30
Max. radial load(4mm from flange)(N) 80 90 90
Gearbox Length L1(mm) 25.8 30.8 35.7
Weight(G) 32.8 36.8 40.8

* Note: Data above does not include the motor. Specifications can be customized per customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
(mm)
Gearbox Nominal Torque
(NM)
Gearbox Max. Intermittent Torque
(NM)
Reduction Ratio Gearbox Length L1
(mm)
No-Load Speed
(rpm)
No-Load Current
(mA max)
Load Speed
(rpm)
Load Current
(A Max)
Torque
(NM)
ZWSMD016016-16 24 3000 150 2500 1.15 0.055 53.8 0.55 0.7 16 25.8
ZWSMD016016-21 24 2286 150 1905 1.15 0.072 21
ZWSMD016016-26 24 1846 150 1538 1.15 0.089 26
ZWSMD016016-28 24 1714 150 1429 1.15 0.096 28
ZWSMD016016-35 24 1371 150 1143 1.15 0.120 35
ZWSMD016016-44 24 1091 150 909 1.15 0.151 44
ZWSMD016016-62 24 774 170 645 1.2 0.213 62
ZWSMD016016-83 24 578 170 482 1.2 0.286 58.8 0.8 1 83 30.8
ZWSMD016016-103 24 466 170 388 1.2 0.354 103
ZWSMD016016-111 24 432 170 360 1.2 0.382 111
ZWSMD016016-138 24 348 170 290 1.2 0.475 138
ZWSMD016016-150 24 320 170 267 1.2 0.516 150
ZWSMD016016-172 24 279 170 233 1.2 0.592 172
ZWSMD016016-186 24 258 170 215 1.2 0.640 186
ZWSMD016016-231 24 208 170 173 1.2 0.795 231
ZWSMD016016-243 24 198 190 165 1.25 1.100 63.7 0.9 1.1 243 35.7
ZWSMD016016-326 24 147 190 123 1.25 1.100 326
ZWSMD016016-406 24 118 190 99 1.25 1.100 406
ZWSMD016016-439 24 109 190 91 1.25 1.100 439
ZWSMD016016-546 24 88 190 73 1.25 1.100 546
ZWSMD016016-590 24 81 190 68 1.25 1.100 590
ZWSMD016016-679 24 71 190 59 1.25 1.100 679
ZWSMD016016-734 24 65 190 54 1.25 1.100 734
ZWSMD016016-794 24 60 190 50 1.25 1.100 794
ZWSMD016016-913 24 53 190 44 1.25 1.100 913
ZWSMD016016-987 24 49 190 41 1.25 1.100 987
ZWSMD016016-1135 24 42 190 35 1.25 1.100 1135
ZWSMD016016-1227 24 39 190 33 1.25 1.100 1227
ZWSMD016016-1526 24 31 190 26 1.25 1.100 1526

* The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

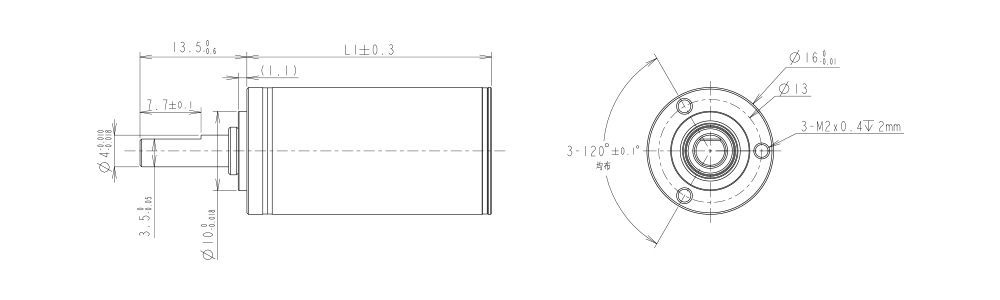

Technical Illustration
