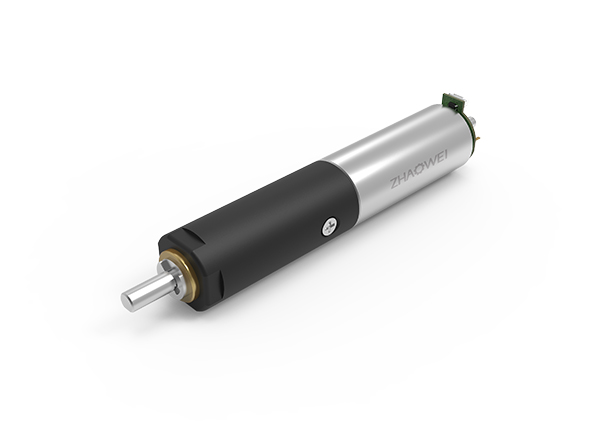

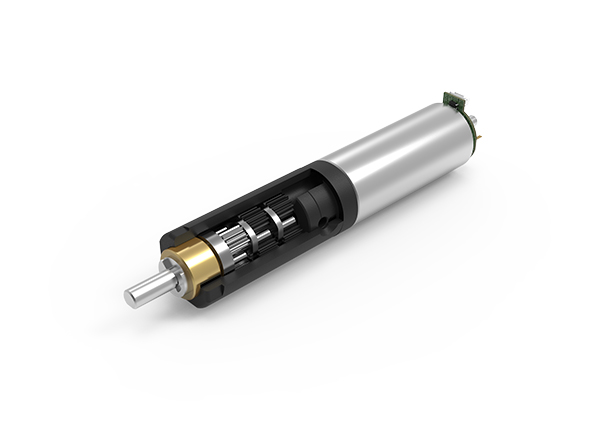

Φ6mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD006006

Diameter (mm):6

Length (mm):9.7~16.9

Max. Nominal Torque(Nm):0.02

Recommended temperature range(℃):-10~+50

Bearing at output :sliding bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 5、6 23、31、41 110、148、198、266 531、711、952、1275、1708
Max. Nominal  Torque (Nm) 0.02 0.02 0.02 0.02
Max. Intermittent Torque (Nm) 0.06 0.06 0.06 0.06
Max. efficiency (%) 85 72 57 49
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic) (N) 0.05 0.05 0.05 0.05
Gearbox Length L1 (mm) 9.7 12.1 14.5 16.9
Weight (G) 3 3 3 3

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD006006-5 3.0 3724 30 3229 100 3.3 0.32 23.7 200 600 4.8 9.7
ZWBPD006006-6 3.0 2780 30 2411 100 4.4 0.43 23.7 200 600 6.43 9.7
ZWBPD006006-23 3.0 776 34 673 100 13.3 1.31 26.1 200 600 23.04 12.1
ZWBPD006006-31 3.0 579 34 502 100 17.8 1.75 26.1 200 600 30.86 12.1
ZWBPD006006-41 3.0 432 34 375 100 23.9 2.34 26.1 200 600 41.33 12.1
ZWBPD006006-110 3.0 162 37 140 100 54.3 5.33 28.5 200 600 110.6 14.5
ZWBPD006006-148 3.0 121 37 105 100 72.8 7.14 28.5 200 600 148.1 14.5
ZWBPD006006-198 3.0 90 37 78 100 97.5 9.56 28.5 200 600 198.4 14.5
ZWBPD006006-266 3.0 67 37 58 100 130.5 12.80 28.5 200 600 265.7 14.5
ZWBPD006006-531 3.0 34 40 29 100 200.0 19.61 30.9 200 600 530.8 16.9
ZWBPD006006-711 3.0 25 40 22 95 200.0 19.61 30.9 200 600 711.0 16.9
ZWBPD006006-952 3.0 19 40 16 90 200.0 19.61 30.9 200 600 952.2 16.9
ZWBPD006006-1275 3.0 14 40 12 80 200.0 19.61 30.9 200 600 1275.2 16.9
ZWBPD006006-1708 3.0 10 40 9 70 200.0 19.61 30.9 200 600 1707.9 16.9

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

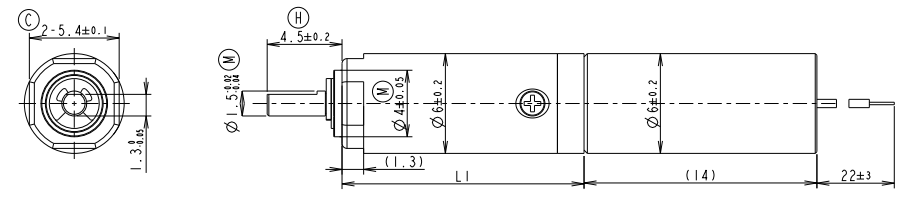

Technical Illustration
