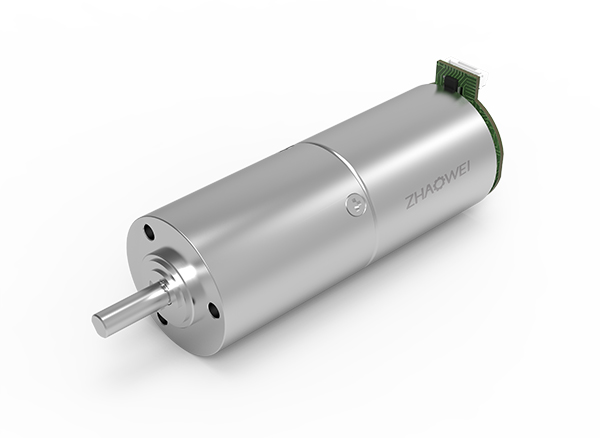

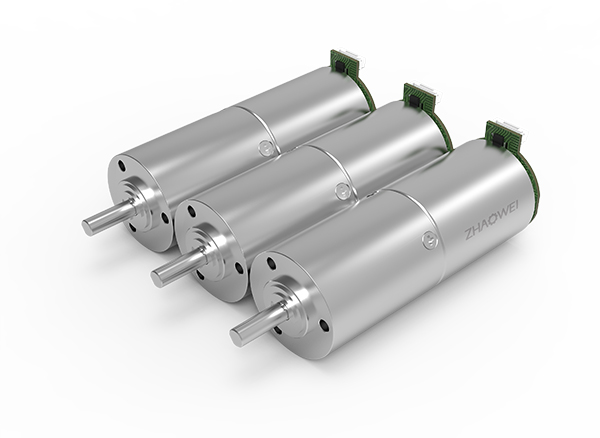

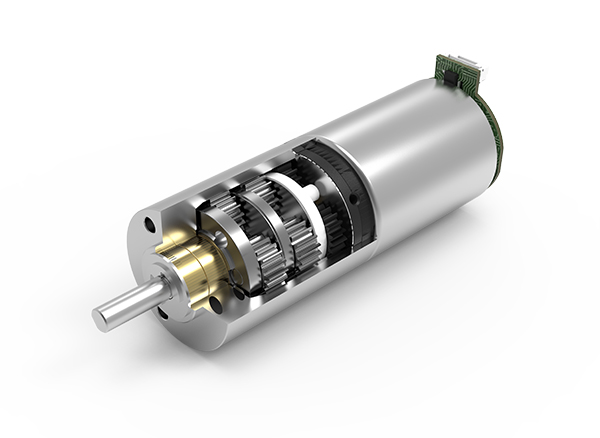

Φ24mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD024024

Diameter (mm):24

Length (mm):19~39

Transmittable Power(W):30

Max. Nominal Torque(Nm):2

Recommended temperature range(℃): -30~+100

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable Power (W) 30 30 30 30
Max. intermittent transmittable power(W) 40 40 40 40
Max. Nominal  Torque(Nm) 2.0000 2.0000 2.0000 2.0000
Max. Intermittent Torque (Nm) 6.0000 6.0000 6.0000 6.0000
Max. efficiency (%) 87 68 58 50
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic)(N) 300 300 300 300
Max. radial load(4mm from flange)(N) 100 100 100 100
Gearbox Length L1(mm) 19 25 31 39
Weight(G) 90 101 112 125

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD024024-4 12 1459.803922 70 1258.75 215 73.92 7.2493344 49.8 20000 60000 4 19
ZWBMD024024-6 12 973.2026144 70 839.1666667 215 110.88 10.8740016 20000 60000 6
ZWBMD024024-16 12 364.9509804 75 314.6875 215 248.3712 24.35776358 55.8 20000 60000 16 25
ZWBMD024024-24 12 243.3006536 75 209.7916667 215 372.5568 36.53664538 20000 60000 24
ZWBMD024024-36 12 162.2004357 75 139.8611111 215 558.8352 54.80496806 20000 60000 36
ZWBMD024024-64 12 91.2377451 75 78.671875 220 834.527232 81.84208564 61.8 20000 60000 64 31
ZWBMD024024-96 12 60.8251634 75 52.44791667 220 1144.44 112.2352308 20000 60000 96
ZWBMD024024-144 12 40.55010893 75 34.96527778 220 1877.686272 184.1446927 20000 60000 144
ZWBMD024024-216 12 27.03340595 75 23.31018519 220 2816.529408 276.217039 20000 60000 216
ZWBMD024024-256 12 22.80943627 80 19.66796875 220 2804.0115 274.9894078 69.8 20000 60000 256 39
ZWBMD024024-384 12 15.20629085 80 13.11197917 220 4206.017249 412.4841116 20000 60000 384
ZWBMD024024-576 12 10.13752723 80 8.741319444 220 6309.025874 618.7261675 20000 60000 576
ZWBMD024024-864 12 6.758351489 80 5.827546296 220 9463.538811 928.0892512 20000 60000 864
ZWBMD024024-1296 12 4.505567659 80 3.885030864 220 14195.30822 1392.133877 20000 60000 1296

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

Technical Illustration
