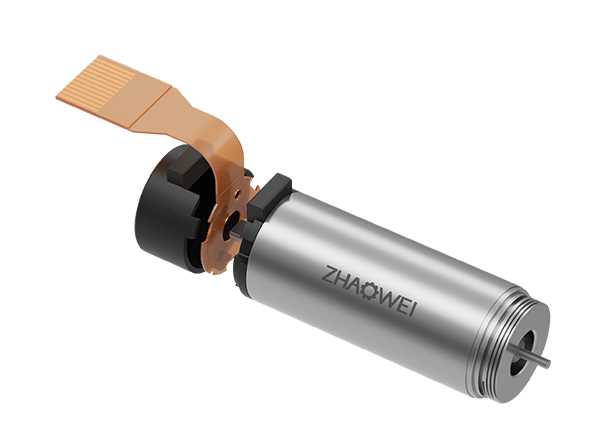

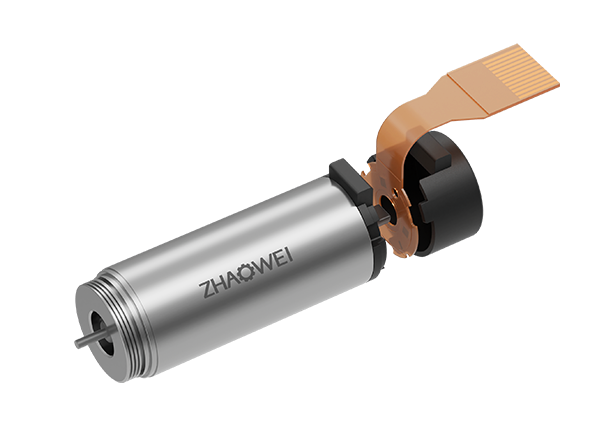

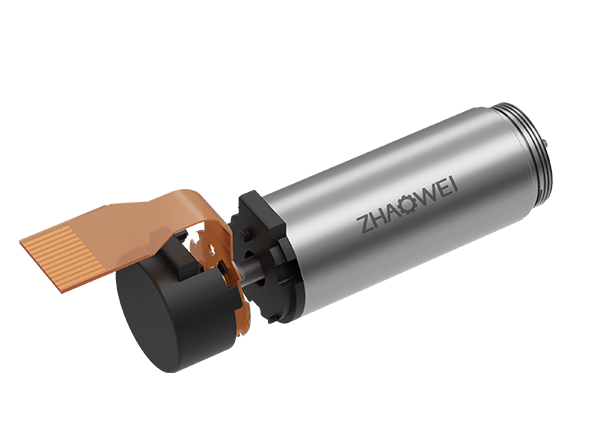

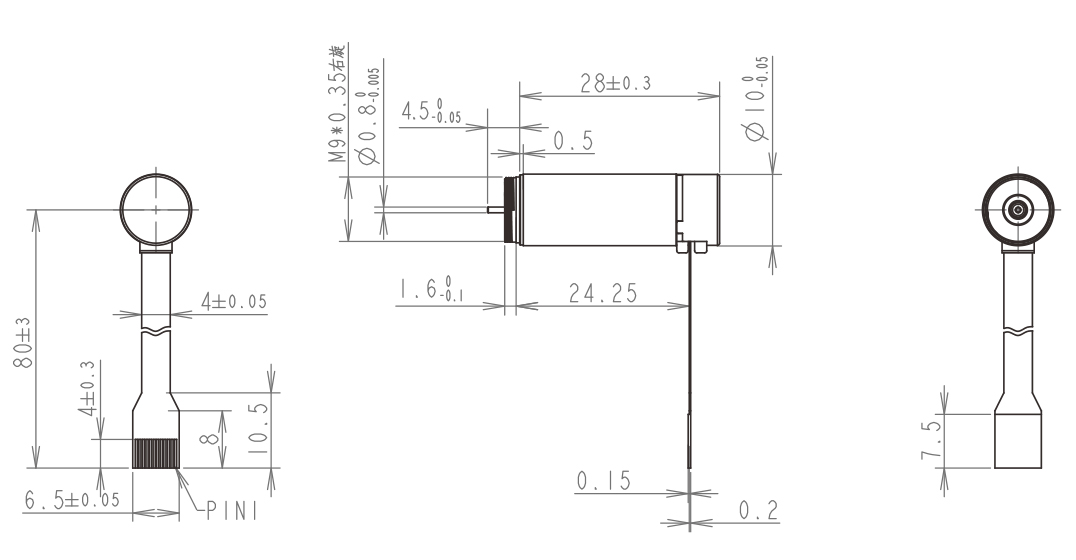

| Motor Data（Nominal） | |||
| Nominal voltage（V) | 12 | ||
| No-Load Speed（rpm) | 33000±10% | ||
| No-Load Current（A) | 80±50% | ||
| Nominal speed (rpm) | 26500±10% | ||
| Nominal torque (mNm) | 1.5 | ||
| Nominal current(A) | 0.7±50% | ||
| Stall torque(mNm) | 9±7% | ||
| Stall current(A) | 2.75±20% | ||
| Max. efficiency(%) | 71±7% | ||
| Motor Constant（Nominal） | |||
| Phase-to-Phase Resistance（Ω） | 4.75±10% | ||
| Phase-to-Phase inductance（mH） | 0.026±10% | ||
| Torque constant（mNm/A） | 3.37±20% | ||
| Speed constant（rpm/V） | 3747±20% | ||
| Speed/torque gradient（rpm/mNm） | 3667±20% | ||
| Mechanical time constant（ms） | 3.56±20% | ||
| Rotor inertia（gcm2） | 0.092±20% | ||
| Thermal Data | |||
| Thermal resistance housing-ambient（K/W） | 42.6 | ||
| Thermal resistance winding-housing（K/W） | 7.2 | ||
| Thermal time constant winding（s） | 4.2 | ||
| Thermal time constant motor（s） | 156 | ||
| Ambient temperature（℃） | -20…+100 | ||
| Max. winding temperature（℃） | 125 | ||
| Mechanical Data（Ball Bearing） | |||
| Max. speed（rpm） | 40 000 | ||
| Max. axial play（mm） | < 0.15 N 0 | ||
| > 0.15 N 0.06（max） | |||
| Radial play | preloaded | ||
| Max. axial load dynamic(N) | 2 | ||
| Max. force for press fits (static)（N） | 10 | ||
| Max. radial load (2 mm from flange) (N) | 5 | ||
| Terminal Type | |||
| Molex 52745-1297 |
Note: Specifications can be customized per customer requirements.
