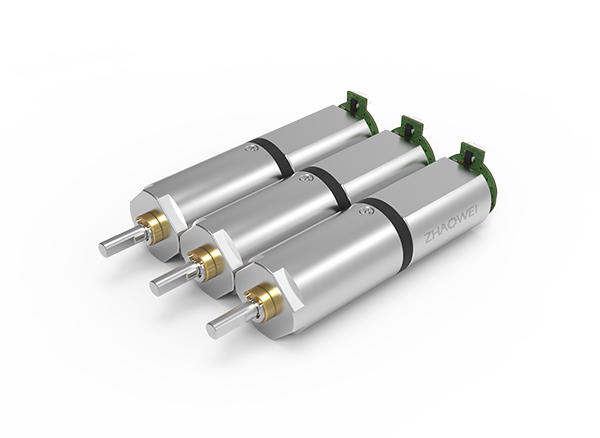

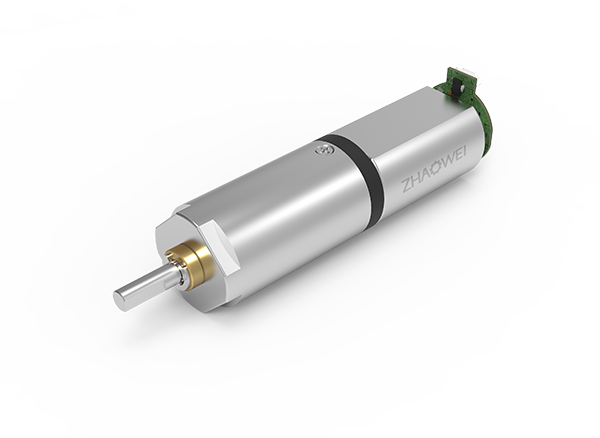

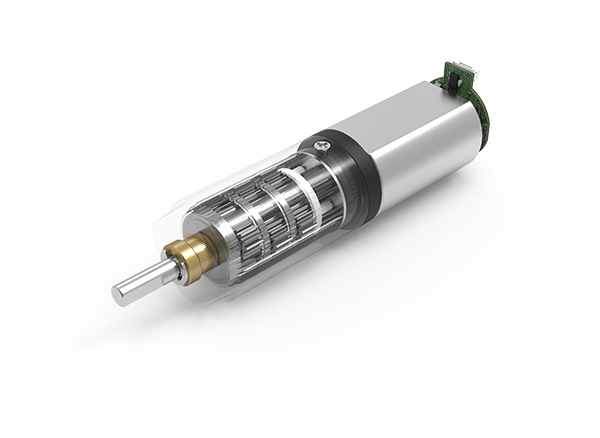

Φ10mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD010010

Diameter (mm):10

Length (mm):9.7~19

Transmittable Power(W):0.2

Max. Nominal Torque(Nm):0.2

Recommended temperature range(℃):-20~+85

Bearing at output :sliding bearing/rolling Bearing

Gearbox Technical Data

Stages 2 3 4
Reduction Ratio 13、19、28 46、69、102、151 168、249、368、546、809
Max. continuous transmittable Power (W) 0.2 0.2 0.2
Max. intermittent transmittable power(W) 0.5 0.5 0.5
Max. Nominal  Torque(Nm) 0.2000 0.2000 0.2000
Max. Intermittent Torque (Nm) 0.6000 0.6000 0.6000
Max. efficiency (%) 76 66 57
Average backlash no load (°) 2.5 2.5 2.5
Max. axial load (dynamic)(N) 2 2 2
Max. radial load(4mm from flange)(N) 7 7 7
Gearbox Length L1(mm) 12.8 15.9 19
Weight(G) 10 10 10

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
 No-Load Data Load Data Overall Length
L
Max. Nominal  Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD010010-3 3 4318.18 120 3625.00 215 6.40 0.63 24.7 2000 6000 4 9.7
ZWBMD010010-5 3 2878.79 120 2416.67 215 9.60 0.94 2000 6000 6
ZWBMD010010-13 3 1328.67 130 1115.38 215 16.64 1.63 27.8 2000 6000 13 12.8
ZWBMD010010-19 3 909.09 130 763.16 215 24.32 2.39 2000 6000 19
ZWBMD010010-28 3 616.88 130 517.86 215 35.84 3.51 2000 6000 28
ZWBMD010010-46 3 375.49 140 315.22 215 38.81 3.81 30.9 2000 6000 46 15.9
ZWBMD010010-69 3 250.33 140 210.14 215 58.22 5.71 2000 6000 69
ZWBMD010010-102 3 169.34 140 142.16 215 86.06 8.44 2000 6000 102
ZWBMD010010-151 3 114.39 140 96.03 215 127.41 12.49 2000 6000 151
ZWBMD010010-168 3 98.34 140 86.31 220 106.31 10.43 34 2000 6000 168 19
ZWBMD010010-249 3 66.35 140 58.23 220 157.57 15.45 2000 6000 249
ZWBMD010010-368 3 44.90 140 39.40 220 232.88 22.84 2000 6000 368
ZWBMD010010-546 3 30.26 140 26.56 220 345.52 33.88 2000 6000 546
ZWBMD010010-809 3 20.42 140 17.92 220 511.95 50.21 2000 6000 809

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

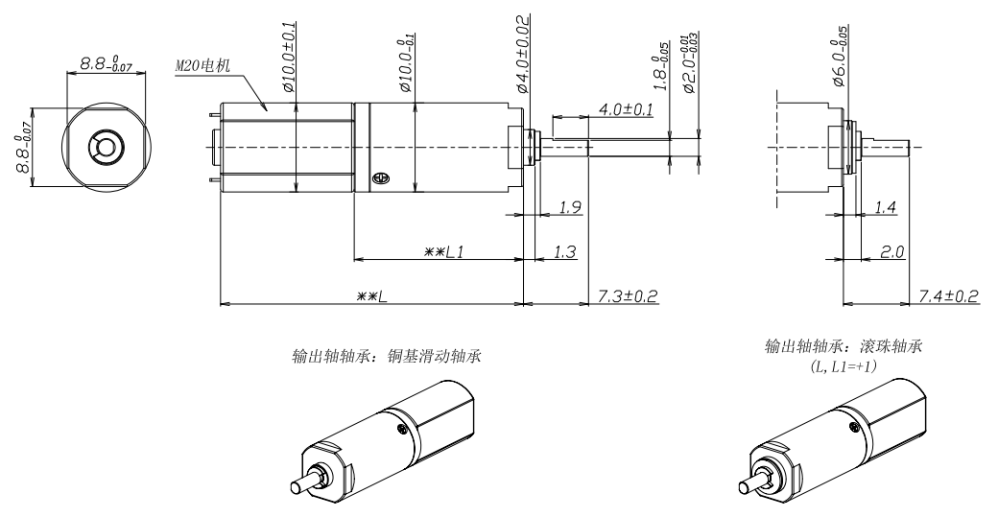

Technical Illustration
