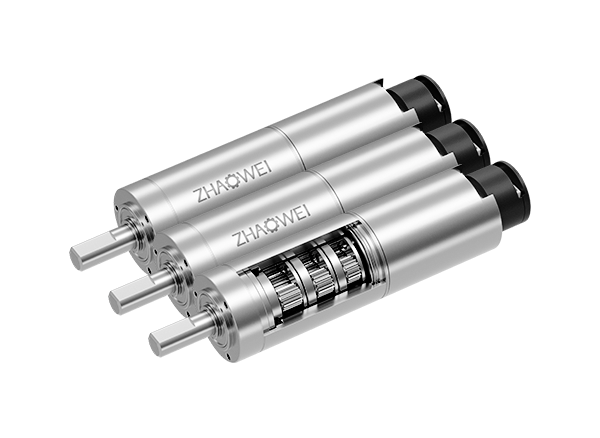

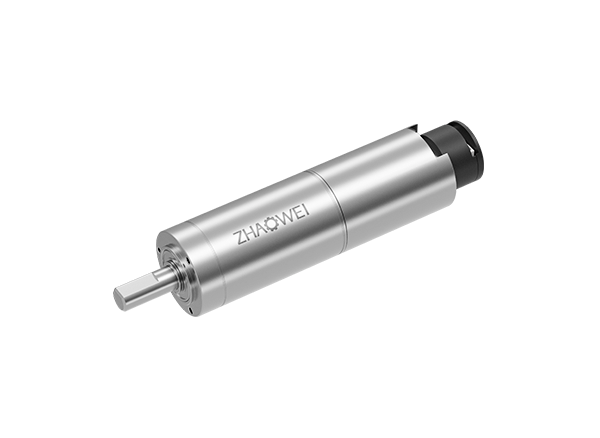

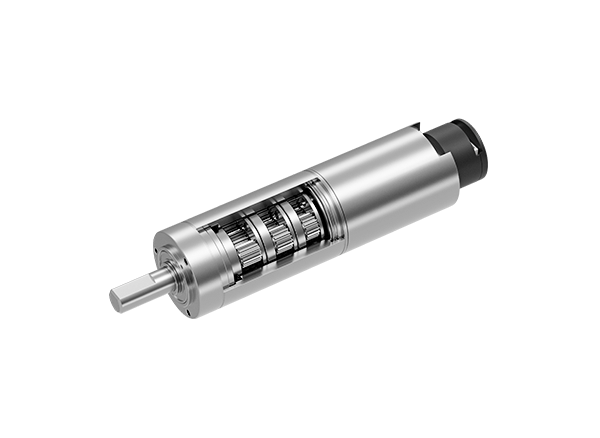

Φ22mm Planetary Gearbox (SMD Series)

PART NO.:ZWSMD022022

Diameter (mm):22

Length (mm):24.3…52.6

Max. Transmittable Power (W) :66

Max. Continuous Torque (Nm):5.5

Max. Continuous Input Speed(rpm):8000

Recommended Temperature Range(℃):-30…+85

Bearing at Output :ball bearing

Gearbox Technical Data

Number of stages 1 2 3 4 5
Reduction Ratio 3.71 9.7,14 43,66 94,112,134,159, 190,   246 415,592,989,1526
Max. continuous transmittable Power (W) 66 36 20 11 6
Max. intermittent transmittable power(W) 82.5 45 25 14 7
Max. continuous torque (Nm) 1 2.9 4.3 5.5 5.2
Max. intermittent torque (Nm) 1.25 3.6 5.3 6.5 6.5
Max. continuous input speed (rpm) 8000 8000 8000 8000 8000
Max. intermittent input speed (rpm) 10000 10000 10000 10000 10000
Max. efficiency (%) 96 92 90 87 83
Average backlash no load (°) 0.5 0.5 0.5 0.5 0.5
Max. axial load (dynamic)(N) 80 80 80 80 80
Max. radial load(4mm from flange)(N) 100 145 150 150 150
Gearbox Length L1(mm) 24.3 32.8 40.4 46.5 52.6
Weight(G) 53 65 76 88 102

* Note: Data above does not include the motor. Specifications can be customized per customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
(mm)
Gearbox Nominal Torque
(NM)
Gearbox Max. Intermittent Torque
(NM)
Reduction Ratio Gearbox Length L1
(mm)
No-Load Speed
(rpm)
No-Load Current
(mA max)
Load Speed
(rpm)
Load Current
(mA Max)
Torque
(NM)
ZWSMD022022-3.71 24 1914 150 1482 1000 0.06 56.3 1 1.25 3.71 24.3
ZWSMD022022-9.7 24 732 200 567 1200 0.14 64.8 2.9 3.6 9.7 32.8
ZWSMD022022-14 24 507 200 393 1200 0.20 14
ZWSMD022022-43 24 165 250 128 1500 0.60 72.4 4.3 5.3 43 40.4
ZWSMD022022-66 24 108 250 83 1500 0.92 66
ZWSMD022022-94 24 76 300 59 1800 1.27 78.5 5.5 6.5 94 46.5
ZWSMD022022-112 24 63 300 49 1800 1.51 112
ZWSMD022022-134 24 53 300 41 1800 1.81 134
ZWSMD022022-159 24 45 300 35 1800 2.14 159
ZWSMD022022-190 24 37 300 29 1800 2.56 190
ZWSMD022022-246 24 29 300 22 1800 3.32 246
ZWSMD022022-415 24 17 350 13 2200 5.34 84.6 5.2 6.5 415 52.6
ZWSMD022022-592 24 12 350 9 2200 7.62 592
ZWSMD022022-989 24 7 350 6 2200 12.72 989
ZWSMD022022-1526 24 5 350 4 2200 19.63 1526

* The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

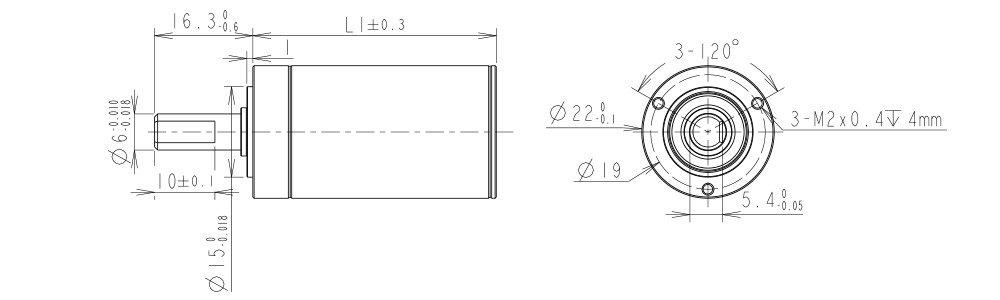

Technical Illustration
