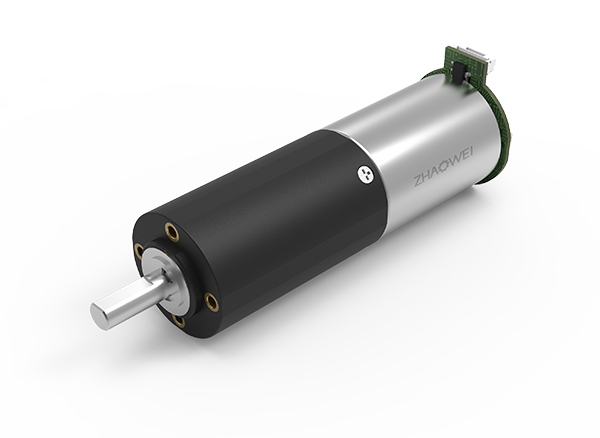

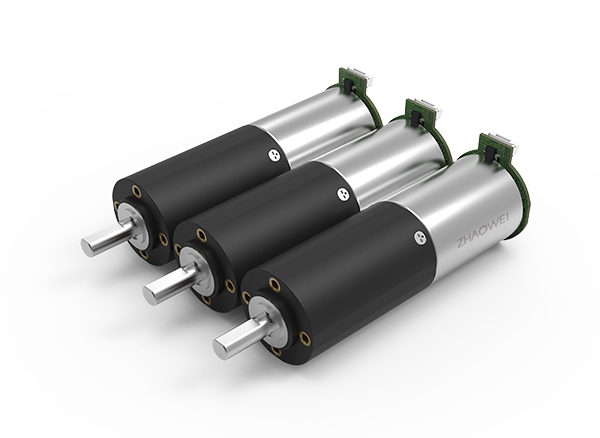

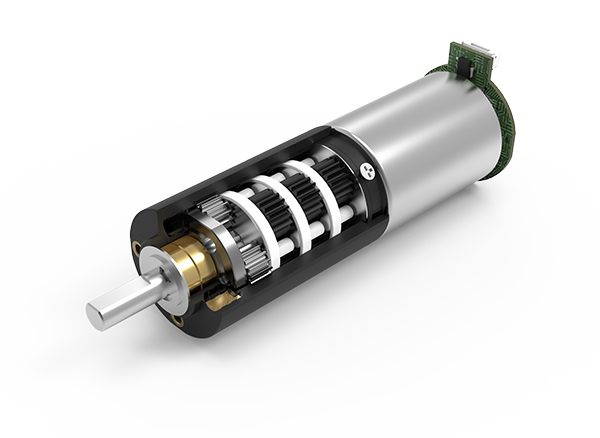

Φ28mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD028028

Diameter (mm):28

Length (mm):29.2~46.2

Transmittable Power(W):3.5

Max. Nominal Torque(Nm):1.5

Recommended temperature range(℃):-40~+85

Bearing at output:sliding bearing/rolling bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 2 3 4
Reduction Ratio 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable power (W) 3.5 3.5 3.5
Max. intermittent transmittable power(W) 8 8 8
Max. continuous torque (Nm) 1.5000 1.5000 1.5000
Max. intermittent torque (Nm) 6.0000 6.0000 6.0000
Max. efficiency (%) 76 66 57
Average backlash no load (°) 3 3 3
Max. axial load (dynamic)(N) 10 10 10
Max. radial load(4mm from flange)(N) 50 50 50
Gearbox Length L1(mm) 29.2 37.7 46.2
Weight(G) 90 90 90

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD028028-4 24.0 1925 160 1658 400 261 25.6 58.1 15000 60000 4 20.7
ZWBPD028028-6 24.0 1283 160 1105 400 392 38.5 15000 60000 6
ZWBPD028028-16 24.0 472 150 413 400 837 82.0 66.6 15000 60000 16 29.2
ZWBPD028028-24 24.0 312 150 276 400 1255 123.1 15000 60000 24
ZWBPD028028-36 24.0 211 150 181 400 1882 184.6 15000 60000 36
ZWBPD028028-64 24.0 119 150 104 350 2206 216.3 75.1 15000 60000 64 37.7
ZWBPD028028-96 24.0 79 150 69 350 3308 324.5 15000 60000 96
ZWBPD028028-144 24.0 54 150 46 350 4963 486.7 15000 60000 144
ZWBPD028028-216 24.0 35 150 31 350 7444 730.0 15000 60000 216
ZWBPD028028-256 24.0 30 150 26 350 6617 648.9 83.6 15000 60000 256 46.2
ZWBPD028028-384 24.0 19 150 17 350 9925 973.4 15000 60000 384
ZWBPD028028-576 24.0 13 150 12 350 14888 1460.1 15000 60000 576
ZWBPD028028-864 24.0 9 150 8 350 15000 1471.1 15000 60000 864
ZWBPD028028-1296 24.0 6 150 5 350 15000 1471.1 15000 60000 1296

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

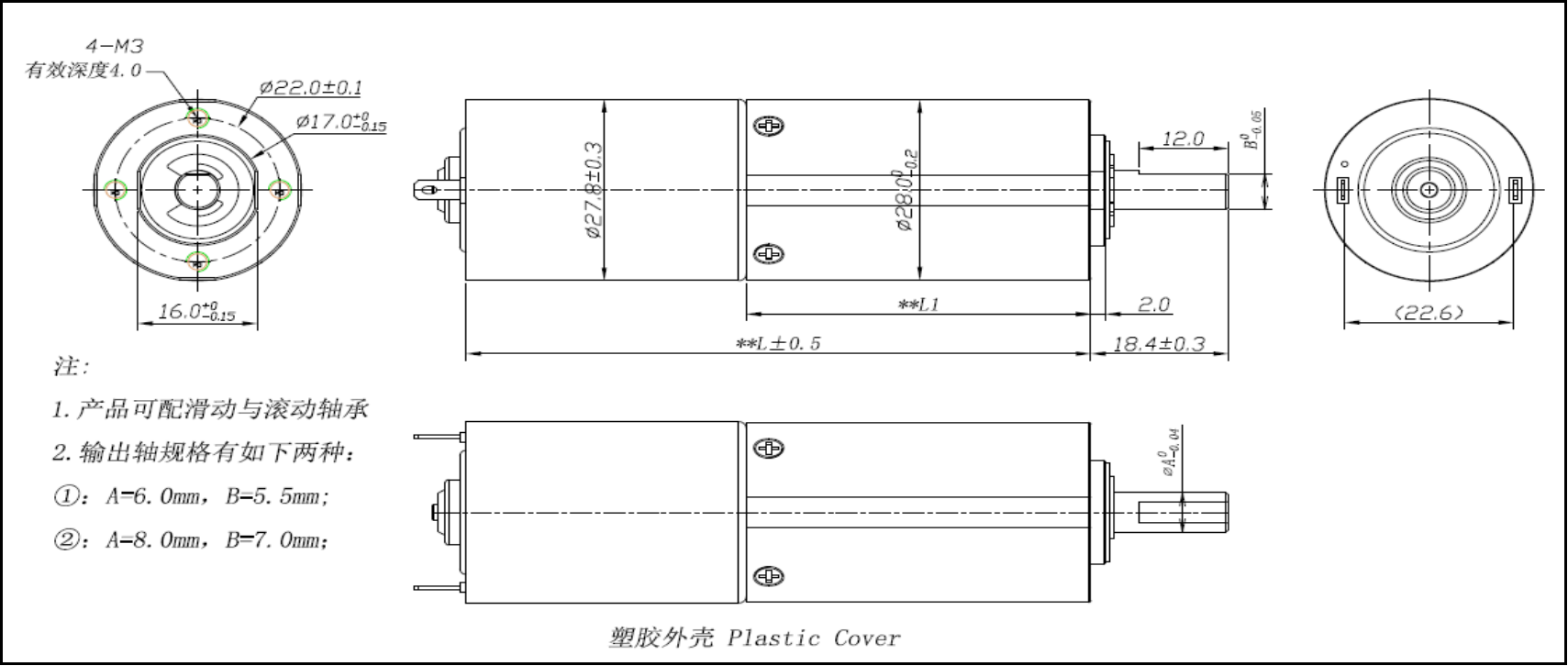

Technical Illustration
