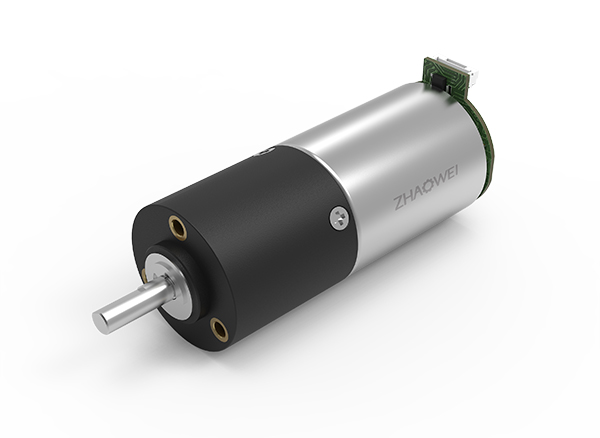

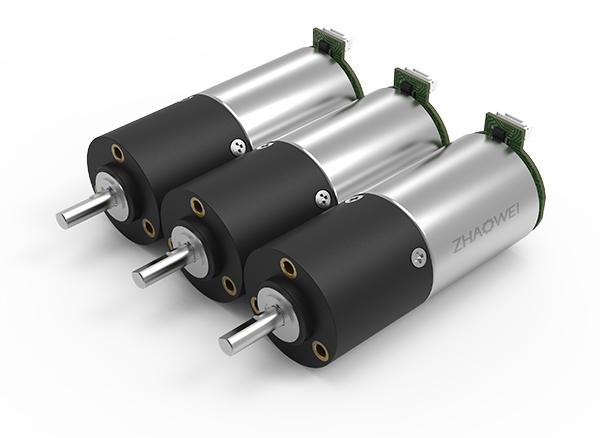

Φ24mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD024024

Diameter (mm):24

Length (mm):17.5~38.7

Transmittable Power(W):20

Max. Nominal Torque(Nm):1.5

Recommended temperature range(℃):-30~+100

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable power (W) 20 20 20 20
Max. intermittent transmittable power(W) 30 30 30 30
Max. continuous torque (Nm) 1.5000 1.5000 1.5000 1.5000
Max. intermittent torque (Nm) 4.5000 4.5000 4.5000 4.5000
Max. efficiency (%) 87 68 58 50
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic)(N) 300 300 300 300
Max. radial load(4mm from flange)(N) 100 100 100 100
Gearbox Length L1(mm) 17.5 24.5 31.5 38.7
Weight(G) 68 76 82 92

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD024024-4 12.0 1460 70 1259 215 74 7.2 48.3 15000 45000 4 17.5
ZWBPD024024-6 12.0 973 70 839 215 111 10.9 15000 45000 6
ZWBPD024024-16 12.0 365 75 315 215 248 24.4 55.3 15000 45000 16 24.5
ZWBPD024024-24 12.0 243 75 210 215 373 36.5 15000 45000 24
ZWBPD024024-36 12.0 162 75 140 215 559 54.8 15000 45000 36
ZWBPD024024-64 12.0 91 75 79 220 835 81.8 62.3 15000 45000 64 31.5
ZWBPD024024-96 12.0 61 75 52 220 1144 112.2 15000 45000 96
ZWBPD024024-144 12.0 41 75 35 220 1878 184.1 15000 45000 144
ZWBPD024024-216 12.0 27 75 23 220 2817 276.2 15000 45000 216
ZWBPD024024-256 12.0 23 80 20 220 2804 275.0 69.5 15000 45000 256 38.7
ZWBPD024024-384 12.0 15 80 13 220 4206 412.5 15000 45000 384
ZWBPD024024-576 12.0 10 80 9 220 6309 618.7 15000 45000 576
ZWBPD024024-864 12.0 7 80 6 220 9464 928.1 15000 45000 864
ZWBPD024024-1296 12.0 5 80 4 220 12000 1176.8 15000 45000 1296

* Above specifications are subject to change without notice, just for reference and customizable according to requirements.

Technical Illustration
