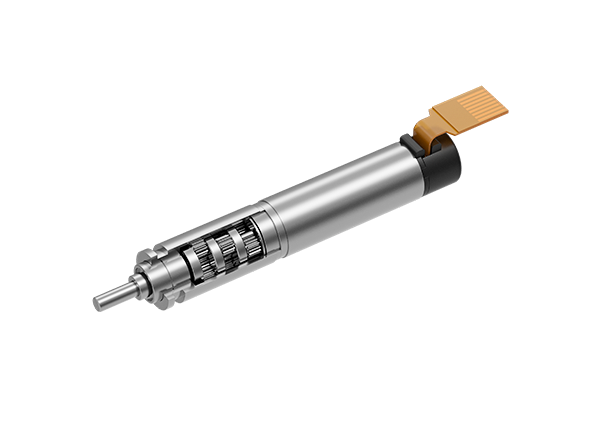

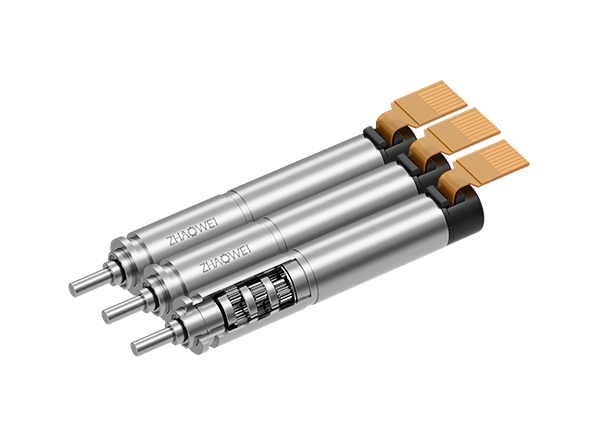

Φ6mm Planetary Gearbox (SMD Series)

PART NO.:ZWSMD006006

Diameter (mm):6

Length (mm):5.8~15.4

Max. Continuous Transmittable Power(W):0.63

Max. Continuous Torque(Nm):0.03

Max. Continuous Input Speed(rpm):40000

Recommended Temperature Range(℃):-30…+85

Bearing at Output:ball bearing

Gearbox Technical Data

Number of stages 1 2 3 4 5
Reduction Ratio 3.9 15 57 221 854
Max. continuous transmittable Power (W) 0.63 0.39 0.2 0.15 0.04
Max. intermittent transmittable power(W) 0.79 0.49 0.25 0.18 0.05
Max. continuous torque (Nm) 0.002 0.005 0.01 0.03 0.03
Max. intermittent torque (Nm) 0.005 0.01 0.02 0.06 0.06
Max. continuous input speed (rpm) 40000 40000 40000 40000 40000
Max. intermittent input speed (rPm) 40000 40000 40000 40000 40000
Max. efficiency (%) 83 69 57 65 47
Average backlash no load (°) 1.8 2 2.2 2.5 2.8
Max. axial load (dynamic)(N) 5 5 5 5 5
Max. radial load(4mm from flange)(N) 5 6 7 8 8
Gearbox Length L1(mm) 5.8 8.2 10.6 13 15.4
Weight(G) 1.7 2.1 2.5 2.9 3.3

* Note: Data above does not include the motor. Specifications can be customized per customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
(mm)
Gearbox Nominal Torque
(NM)
Gearbox Max. Intermittent Torque
(NM)
Reduction Ratio Gearbox Length L1
(mm)
No-Load Speed
(rpm)
No-Load Current
(mA max)
Load Speed
(rpm)
Load Current
(mA Max)
Torque
(NM)
ZWSMD006006-04-X 12 16437 150 12133 350 0.002 28.8 0.002 0.005 3.9 5.8
ZWSMD006006-15-X 12 4261 150 3146 355 0.005 31.2 0.005 0.01 14.9 8.2
ZWSMD006006-57-X 12 1105 160 816 360 0.010 33.6 0.01 0.02 57.4 10.6
ZWSMD006006-221-X 12 286 170 211 365 0.030 36 0.03 0.06 221.3 13
ZWSMD006006-854-X 12 74 180 55 370 0.030 38.4 0.03 0.06 853.7 15.4

* The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

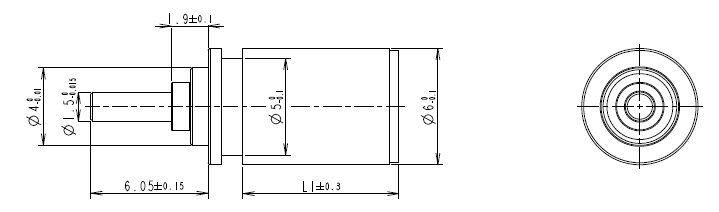

Technical Illustration
