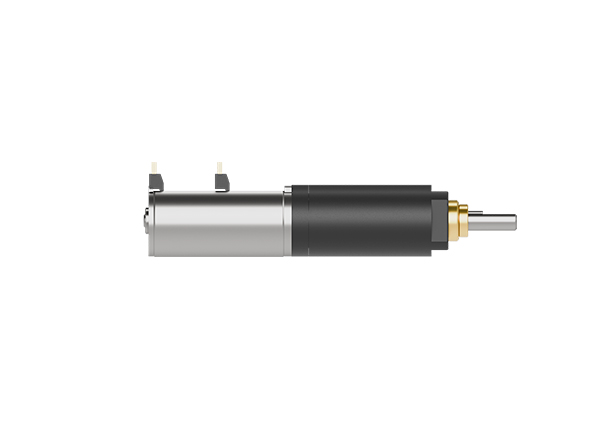

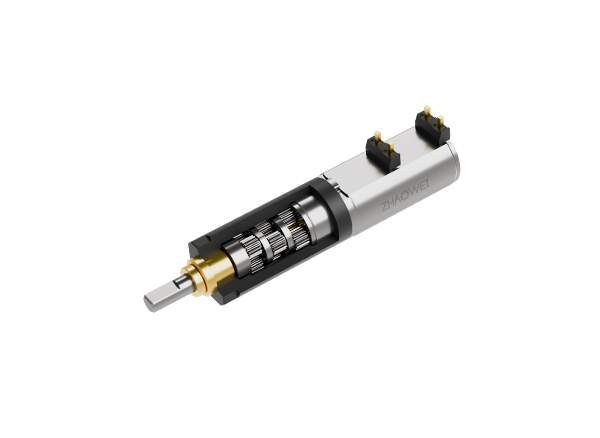

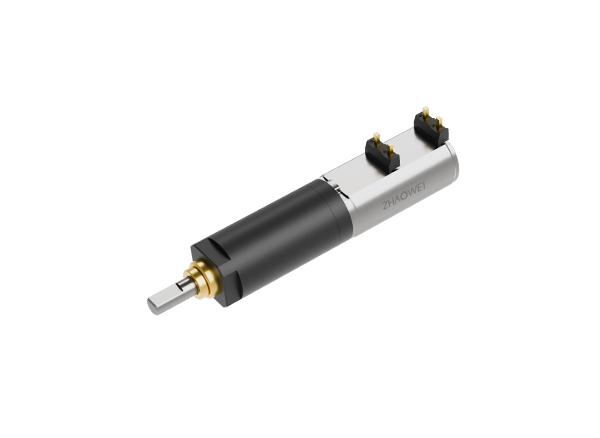

Φ4mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD004004

Diameter (mm):4.3

Length (mm):6.17~10.72

Transmittable Power(W):0.7

Max. Nominal Torque(Nm):0.015

Recommended temperature range(℃):-10~70

Bearing at output :sliding bearing

Gearbox Technical Data

Gearbox Technical Data
Stages 1 2 3 4
Reduction Ratio 6 36 216 1296
Max. continuous transmittable power (W) 0.7 0.7 0.7 0.7
Max. intermittent transmittable power (W) 0.7 0.7 0.7 0.7
Max. continuous torque (Nm) 0.015 0.015 0.015 0.015
Max. intermittent torque (Nm) 0.04 0.04 0.04 0.04
Average backlash no load (°)
Gearbox Length L1(mm) 6.17 7.67 9.17 10.72

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements

Recommended Models

PART NO. Recommended Models Max. Nominal  Torque of Gear Box Max. Intermittent Torque of Gear Box Reduction Ratio Gear Box Length
L1
Nominal Voltage
(V)
Speed at 1000 pps Load Data Overall Length
L
Torque
VDC rpm gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD004004-6 3.0 500.0 2.0 0.20 11.62 150 400 6 6.17
ZWBPD004004-36 3.0 83.0 9.4 0.92 13.12 150 400 36 7.67
ZWBPD004004-216 3.0 13.0 40.8 4.00 14.62 150 400 216 9.17
ZWBPD004004-1296 3.0 2.0 153.0 15.00 16.17 150 400 1296 10.72

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

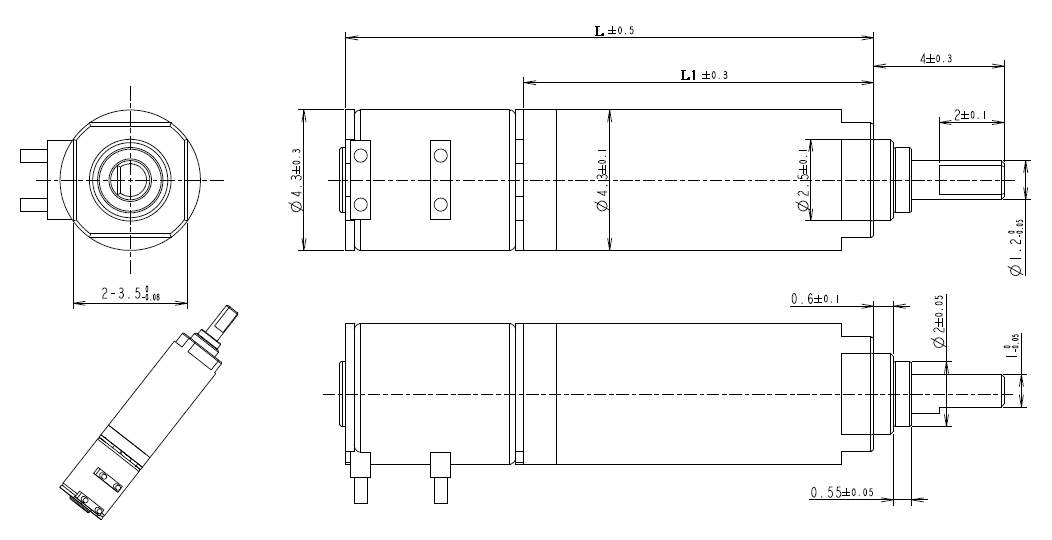

Technical Illustration
