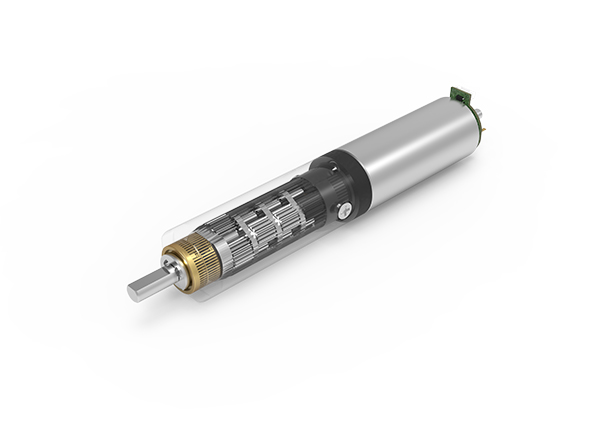

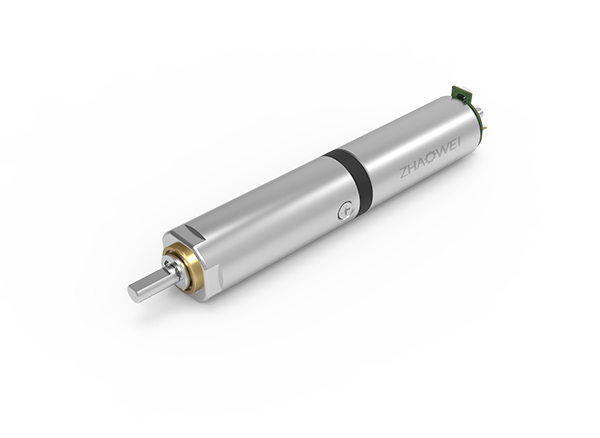

Φ6mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD006006

Diameter (mm):6

Length (mm):9.7~16.9

Max. Nominal Torque(Nm):0.025

Recommended temperature range(℃):-10~50

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 5、6 23、31、41 110、148、198、266 531、711、952、1275、1708
Max. Nominal  Torque(Nm) 0.025 0.025 0.025 0.025
Max. Intermittent Torque (Nm) 0.07 0.07 0.07 0.07
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic)(N) 0.1 0.1 0.1 0.1
Gearbox Length L1(mm) 9.7 12.1 14.5 16.9
Weight(G) 4 4 4 4

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Max. Nominal  Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD006006-5 3 3723.83 30 3229.17 100 3.26 0.32 23.7 250 700 4.8 9.7
ZWBMD006006-6 3 2779.84 30 2410.58 100 4.37 0.43 23.7 250 700 6.43 9.7
ZWBMD006006-23 3 775.80 34 672.74 100 13.32 1.31 26.1 250 700 23.04 12.1
ZWBMD006006-31 3 579.21 34 502.27 100 17.84 1.75 26.1 250 700 30.86 12.1
ZWBMD006006-41 3 432.48 34 375.03 100 23.89 2.34 26.1 250 700 41.33 12.1
ZWBMD006006-110 3 161.63 37 140.16 100 54.33 5.33 28.5 250 700 110.59 14.5
ZWBMD006006-148 3 120.68 37 104.65 100 72.77 7.14 28.5 250 700 148.11 14.5
ZWBMD006006-198 3 90.11 37 78.14 100 97.46 9.56 28.5 250 700 198.37 14.5
ZWBMD006006-266 3 67.28 37 58.34 100 130.52 12.80 28.5 250 700 265.67 14.5
ZWBMD006006-531 3 33.67 40 29.20 100 221.68 21.74 30.9 250 700 530.84 16.9
ZWBMD006006-711 3 25.14 40 22.00 100 250.00 24.52 30.9 250 700 710.95 16.9
ZWBMD006006-952 3 18.77 40 16.28 95 250.00 24.52 30.9 250 700 952.16 16.9
ZWBMD006006-1275 3 14.02 40 12.15 85 250.00 24.52 30.9 250 700 1275.22 16.9
ZWBMD006006-1708 3 10.47 40 10.00 75 250.00 24.52 30.9 250 700 1707.88 16.9

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

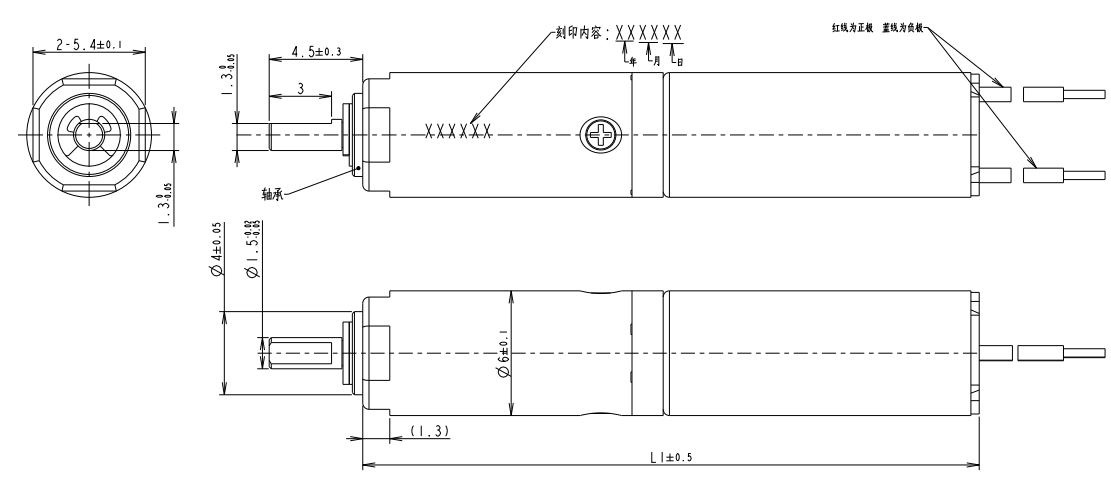

Technical Illustration
