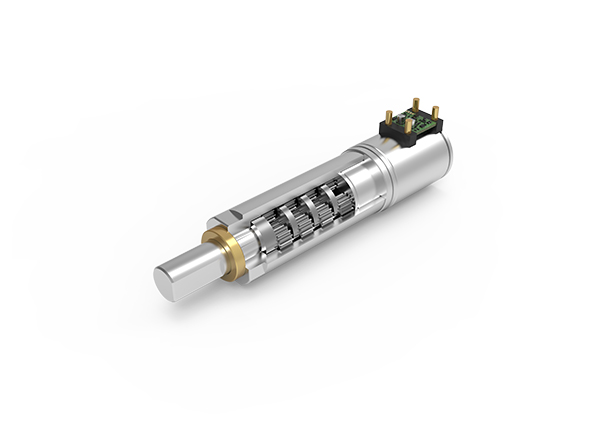

Φ4.3mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD004004

Diameter (mm):4.3

Length (mm):6.17~10.72

Transmittable Power(W):0.7

Max. Nominal Torque(Nm):0.015

Recommended temperature range(℃):-10~70℃

Bearing at output :sliding bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 6 36 216 1296
Max. continuous transmittable Power (W) 0.7 0.7 0.7 0.7
Max. intermittent transmittable power(W) 0.7 0.7 0.7 0.7
Max. Nominal  Torque(Nm) 0.0150 0.0150 0.0150 0.0150
Max. Intermittent Torque (Nm) 0.0400 0.0400 0.0400 0.0400
Average backlash no load (°) 2 2 2 2
Gearbox Length L1(mm) 6.17 7.67 9.17 10.72

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
Speed at 1000 pps Load Data Overall Length L Max. Nominal  Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Load Torque
VDC rpm gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD004004-6 3.0 500.0 2.0 0.20 11.62 150 400 6 6.17
ZWBMD004004-36 3.0 83.0 9.4 0.92 13.12 150 400 36 7.67
ZWBMD004004-216 3.0 13.0 40.8 4.00 14.62 150 400 216 9.17
ZWBMD004004-1296 3.0 2.0 153.0 15.00 16.17 150 400 1296 10.72

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

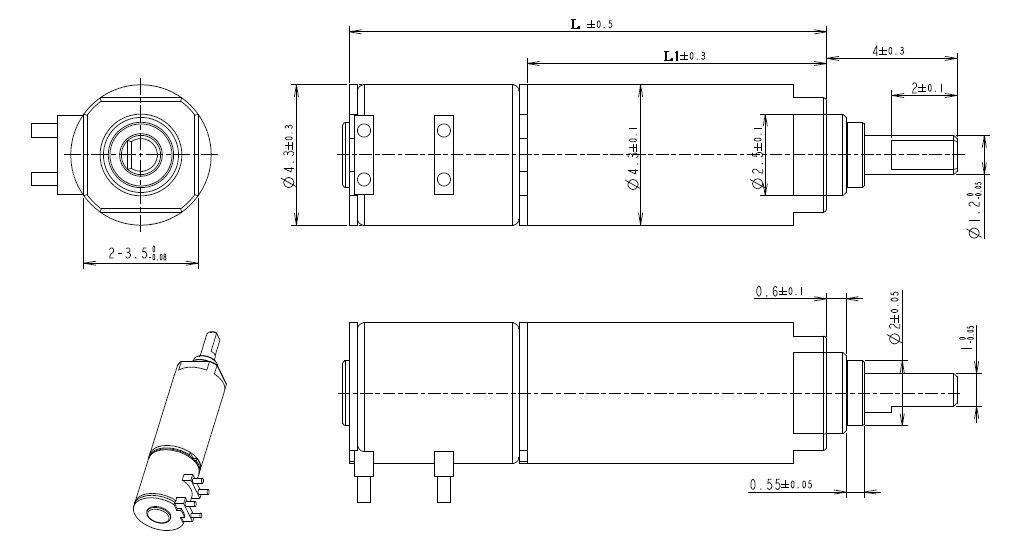

Technical Illustration
