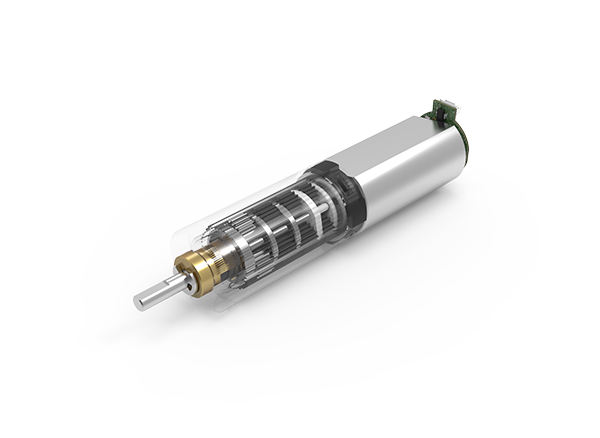

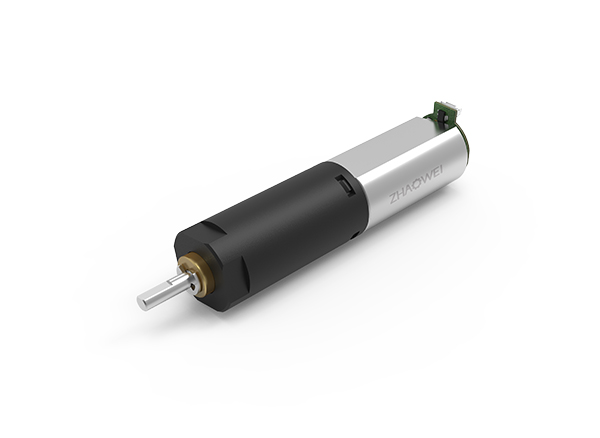

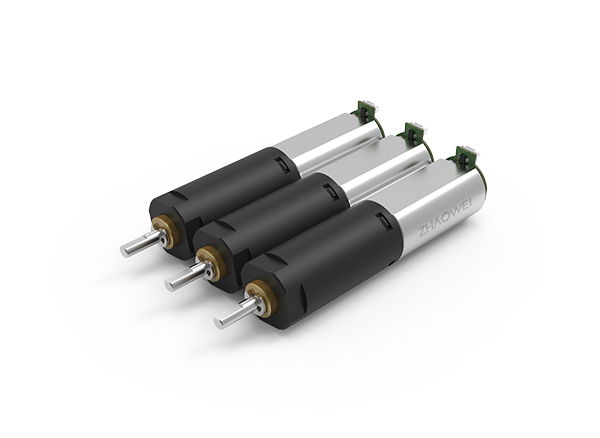

Φ8mm Planetary Gearbox (PD Series)

PART NO.:ZWPD008008

Diameter (mm):8

Length (mm):8.6~16.7

Transmittable Power(W):0.01~0.3

Max. Nominal Torque(Nm):0.005~0.03

Recommended temperature range(℃):-20~+50

Bearing at output:sliding bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 4、5 13、19、28 47、69、102、152 168、249、369、546、809
Max. continuous torque (Nm) 0.0050 0.0100 0.0200 0.0300
Max. intermittent torque (Nm) 0.0200 0.0300 0.0600 0.0900
Max. efficiency (%) 75 56 42 32
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic)(N) 0.7 0.7 0.7 0.7
Max. radial load(4mm from flange)(N) 1 1 1 1
Gearbox Length L1(mm) 8.6 11.3 14 16.7
Weight(G) 3 3.2 3.6 4.6

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWPD008008-4 4.2 4233 100 3111 205 4 0.4 23.1 50 200 3.6 8.6
ZWPD008008-5 4.2 2857 100 2100 205 6 0.6 50 200 5.3
ZWPD008008-13 4.2 1122 105 864 205 11 1.1 25.8 100 300 13.0 11.3
ZWPD008008-19 4.2 758 105 583 205 16 1.6 100 300 19.2
ZWPD008008-28 4.2 511 105 394 205 24 2.4 100 300 28.4
ZWPD008008-47 4.2 306 105 240 210 30 2.9 28.5 200 600 46.7 14.0
ZWPD008008-69 4.2 207 105 162 210 44 4.3 200 600 69.1
ZWPD008008-102 4.2 140 105 109 210 65 6.4 200 600 102.4
ZWPD008008-152 4.2 94 105 74 210 96 9.4 200 600 151.7
ZWPD008008-168 4.2 84 110 67 210 80 7.8 31.2 300 900 168.0 16.7
ZWPD008008-249 4.2 56 110 45 210 118 11.6 300 900 248.8
ZWPD008008-369 4.2 38 110 30 210 175 17.2 300 900 368.6
ZWPD008008-546 4.2 26 110 21 210 259 25.4 300 900 546.1
ZWPD008008-809 4.2 17 110 14 210 384 37.7 300 900 809.1

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

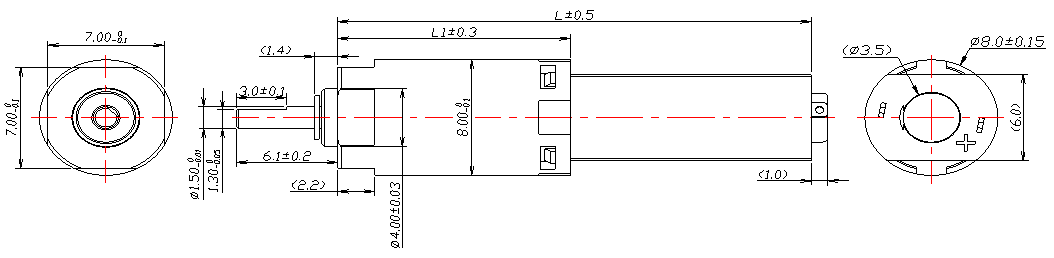

Technical Illustration
