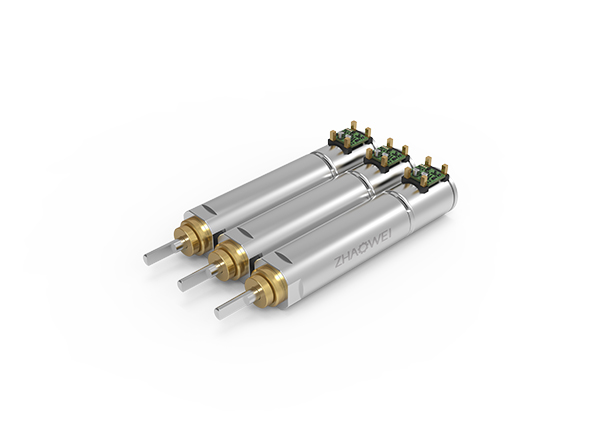

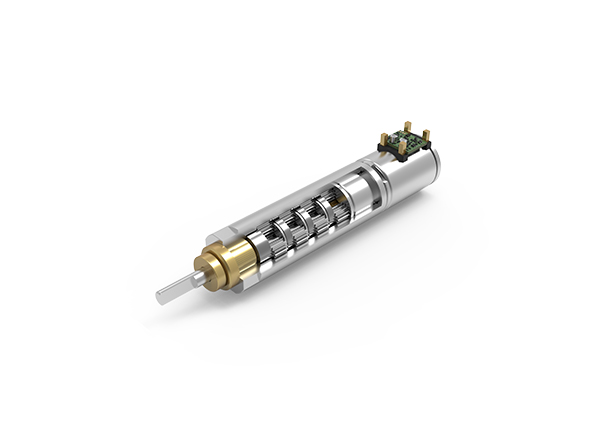

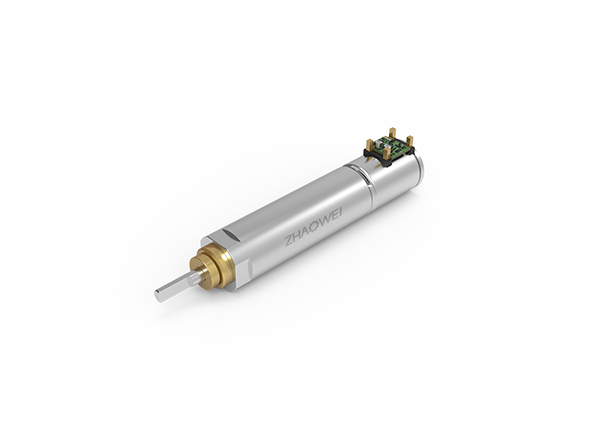

Φ3.4mm Planetary Gearbox (MD series)

PART NO.:ZWBMD003003

Diameter (mm):3.4

Length (mm):6~10.5

Transmittable Power(W):0.7

Max. Nominal Torque(Nm):0.005

Recommended temperature range(℃):-10~70

Bearing at output:sliding bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 5 25 125 625
Max. continuous transmittable Power (W) 0.7 0.7 0.7 0.7
Max. intermittent transmittable power(W) 0.7 0.7 0.7 0.7
Max. Nominal  Torque(Nm) 0.005 0.005 0.005 0.005
Max. Intermittent Torque (Nm) 0.015 0.015 0.015 0.015
Max. efficiency (%) 85 72 61 52
Average backlash no load (°) 2 2 2 2
Gearbox Length L1(mm) 6 7.5 9 10.5

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
Speed at 1000 pps Nominal Torque Overall Length
L
Max. Nominal  Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gear Box Length
L1
VDC rpm gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD003003-5 3.0 600.0 1.0 0.10 10.75 50 150 5 6.0
ZWBMD003003-25 3.0 120.0 3.6 0.35 12.25 50 150 25 7.5
ZWBMD003003-125 3.0 24.0 12 1.18 13.75 50 150 125 9.0
ZWBMD003003-625 3.0 4.8 45 4.41 15.25 50 150 625 10.5

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

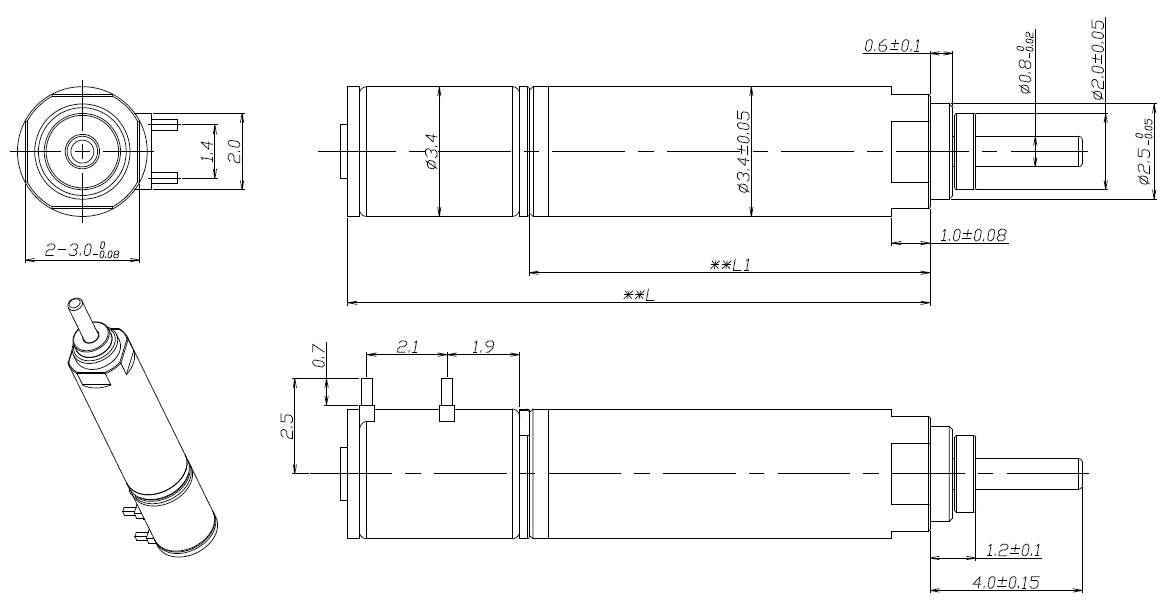

Technical Illustration
