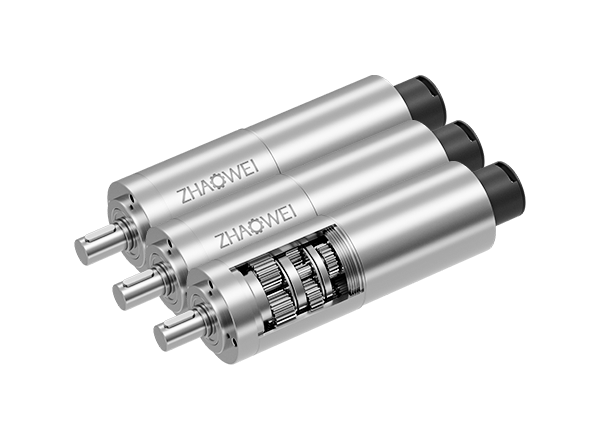

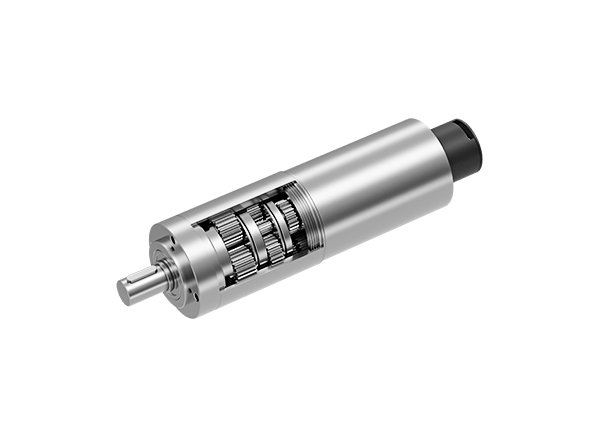

PART NO.：ZWSMD042042
Diameter (mm)：42
Length (mm)：47.8…104.5
Max. Transmittable Power (W) ：650
Max. Continuous Torque (Nm)：35
Max. Continuous Input Speed(rpm)：6000
Recommended Temperature Range（℃）：-40…+100
Bearing at Output ：ball bearing
| Number of stages | 1 | 2 | 3 | 4 |
| Reduction Ratio | 3.9,5.3 | 16,21,26,28,35 | 62,83, 103,111, 138,150, 172,186, 231 | 243,326,406, 439,546,590, 679,734,794, 913,987,1135,1227,1526 |
| Max. continuous transmittable Power (W) | 650 | 460 | 200 | 40 |
| Max. intermittent transmittable power（W） | 820 | 580 | 250 | 50 |
| Max. continuous torque (Nm) | 4.5 | 18 | 32 | 35 |
| Max. intermittent torque (Nm) | 7 | 24 | 46 | 50 |
| Max. continuous input speed (rpm) | 6000 | 6000 | 6000 | 6000 |
| Max. intermittent input speed (rpm) | 7500 | 7500 | 7500 | 7500 |
| Max. efficiency (%) | 96 | 93 | 90 | 87 |
| Average backlash no load (°) | 0.5 | 0.5 | 0.5 | 0.5 |
| Max. axial load (dynamic)（N） | 200 | 200 | 200 | 200 |
| Max. radial load（4mm from flange）(N) | 350 | 525 | 750 | 750 |

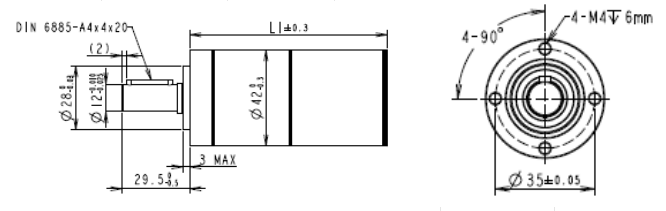

| Gearbox Length L1(mm) | 47.8 | 66.4 | 86 | 104.5 |
| Weight（G） | 400 | 540 | 660 | 800 |
* Note: Data above does not include the motor. Specifications can be customized per customer requirements.
| PART NO. | Nominal Voltage (V) |
No-Load Data | Load Data | Overall Length (mm) |
Gearbox Nominal Torque (NM) |
Gearbox Max. Intermittent Torque (NM) |
Reduction Ratio | Gearbox Length L1 (mm) |
||||
| No-Load Speed （rpm） |
No-Load Current （mA max） |
Load Speed （rpm） |
Load Current （mA Max） |
Torque （NM） |
Torque（kgf.cm） | |||||||
| ZWSMD042042-3.9 | 24 | 2085 | 600 | 1836 | 9000 | 0.50 | 4.6 | 118.8 | 4.5 | 7 | 3.9 | 47.8 |
| ZWSMD042042-5.3 | 24 | 1534 | 600 | 1351 | 9000 | 0.60 | 6.3 | 118.8 | 4.5 | 7 | 5.3 | 47.8 |
| ZWSMD042042-16 | 24 | 508 | 600 | 448 | 9000 | 1.80 | 18.2 | 138 | 18 | 24 | 16 | 67 |
| ZWSMD042042-21 | 24 | 387 | 600 | 341 | 9000 | 2.40 | 23.9 | 138 | 18 | 24 | 21 | 67 |
| ZWSMD042042-26 | 24 | 313 | 600 | 275 | 9000 | 3.00 | 29.5 | 138 | 18 | 24 | 26 | 67 |
| ZWSMD042042-28 | 24 | 290 | 600 | 256 | 9000 | 3.20 | 31.8 | 138 | 18 | 24 | 28 | 67 |
| ZWSMD042042-35 | 24 | 232 | 600 | 205 | 9000 | 4.00 | 39.8 | 138 | 18 | 24 | 35 | 67 |
| ZWSMD042042-62 | 24 | 131 | 700 | 115 | 9500 | 6.90 | 68.9 | 157 | 32 | 46 | 62 | 86 |
| ZWSMD042042-83 | 24 | 98 | 700 | 86 | 9500 | 9.20 | 92.3 | 157 | 32 | 46 | 83 | 86 |
| ZWSMD042042-103 | 24 | 79 | 700 | 70 | 9500 | 11.40 | 114.5 | 157 | 32 | 46 | 103 | 86 |
| ZWSMD042042-111 | 24 | 73 | 700 | 65 | 9500 | 12.30 | 123.4 | 157 | 32 | 46 | 111 | 86 |
| ZWSMD042042-138 | 24 | 59 | 700 | 52 | 9500 | 15.30 | 153.4 | 157 | 32 | 46 | 138 | 86 |
| ZWSMD042042-150 | 24 | 54 | 700 | 48 | 9500 | 16.70 | 166.7 | 157 | 32 | 46 | 150 | 86 |
| ZWSMD042042-172 | 24 | 47 | 700 | 42 | 9500 | 19.10 | 191.2 | 157 | 32 | 46 | 172 | 86 |
| ZWSMD042042-186 | 24 | 44 | 700 | 38 | 9500 | 20.70 | 206.7 | 157 | 32 | 46 | 186 | 86 |
| ZWSMD042042-231 | 24 | 35 | 700 | 31 | 9500 | 25.70 | 256.8 | 157 | 32 | 46 | 231 | 86 |
| ZWSMD042042-243 | 24 | 33 | 800 | 29 | 10000 | 26.40 | 261.1 | 175.5 | 35 | 50 | 243 | 104.5 |
| ZWSMD042042-326 | 24 | 25 | 800 | 22 | 10000 | 35.40 | 350.3 | 175.5 | 35 | 50 | 326 | 104.5 |
| ZWSMD042042-406 | 24 | 20 | 800 | 18 | 10000 | 44.10 | 436.2 | 175.5 | 35 | 50 | 406 | 104.5 |
| ZWSMD042042-439 | 24 | 19 | 800 | 16 | 10000 | 47.10 | 471.7 | 175.5 | 35 | 50 | 439 | 104.5 |
| ZWSMD042042-546 | 24 | 15 | 800 | 13 | 10000 | 59.30 | 586.6 | 175.5 | 35 | 50 | 546 | 104.5 |
| ZWSMD042042-590 | 24 | 14 | 800 | 12 | 10000 | 64.10 | 633.9 | 175.5 | 35 | 50 | 590 | 104.5 |
| ZWSMD042042-679 | 24 | 12 | 800 | 11 | 10000 | 73.80 | 729.6 | 175.5 | 35 | 50 | 679 | 104.5 |
| ZWSMD042042-734 | 24 | 11 | 800 | 10 | 10000 | 79.80 | 788.6 | 175.5 | 35 | 50 | 734 | 104.5 |
| ZWSMD042042-794 | 24 | 10 | 800 | 9 | 10000 | 86.30 | 853.1 | 175.5 | 35 | 50 | 794 | 104.5 |
| ZWSMD042042-913 | 24 | 9 | 800 | 8 | 10000 | 99.20 | 981.0 | 175.5 | 35 | 50 | 913 | 104.5 |
| ZWSMD042042-987 | 24 | 8 | 800 | 7 | 10000 | 107.30 | 1060.5 | 175.5 | 35 | 50 | 987 | 104.5 |
| ZWSMD042042-1135 | 24 | 7 | 800 | 6 | 10000 | 123.40 | 1219.5 | 175.5 | 35 | 50 | 1135 | 104.5 |
| ZWSMD042042-1227 | 24 | 7 | 800 | 6 | 10000 | 133.40 | 1318.4 | 175.5 | 35 | 50 | 1227 | 104.5 |
| ZWSMD042042-1526 | 24 | 5 | 800 | 5 | 10000 | 165.80 | 1639.6 | 175.5 | 35 | 50 | 1526 | 104.5 |
* The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.
