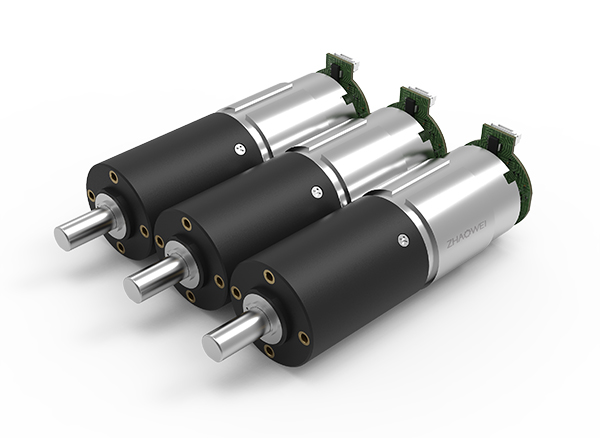

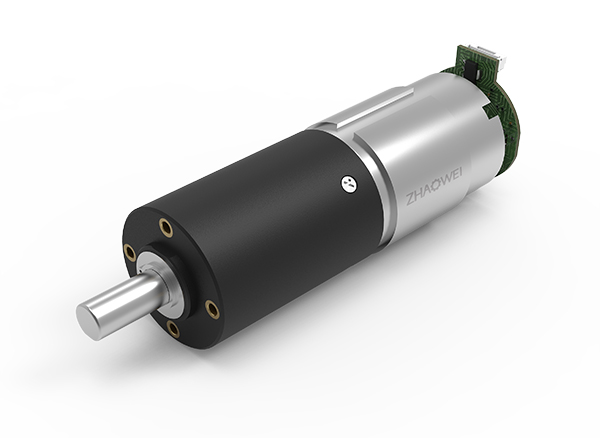

Φ32mm Planetary Gearbox(PD series)

PART NO.:ZWBPD032032

Diameter (mm):32

Length (mm):25.7~55.7

Max. Nominal Torque(Nm):2.5

Recommended temperature range(℃):-20~+75°C

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. Rated Torque(Nm) 2.5000 2.5000 2.5000 2.5000
Max. Intermittent Torque (Nm) 8.0000 8.0000 8.0000 8.0000
Max. efficiency (%) / 81 73 65
Max. axial load (dynamic)(N) 10 10 10 10
Max. radial load(4mm from flange)(N) 120 120 120 120
Gearbox Length L1(mm) 25.7 35.7 45.7 55.7

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal  Voltage No Load Rated Load Overall Length
L
Speed Current Speed Torque
VDC rpm mA(MAX) rpm gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD032032-4 12.0 1328 210 1195 390 38 68.2 25000 80000 4 25.7
ZWBMD032032-6 12.0 942 210 847 550 54 25000 80000 6
ZWBMD032032-16 12.0 327 235 294 1265 124 78.2 25000 80000 16 35.7
ZWBMD032032-24 12.0 232 235 209 1785 175 25000 80000 23
ZWBMD032032-33 12.0 164 235 148 2519 247 25000 80000 33
ZWBMD032032-67 12.0 81 270 73 4109 403 88.2 25000 80000 67 45.7
ZWBMD032032-94 12.0 57 270 51 5797 569 25000 80000 94
ZWBMD032032-133 12.0 41 270 36 8179 802 25000 80000 133
ZWBMD032032-188 12.0 29 270 26 11541 1132 25000 80000 188
ZWBMD032032-272 12.0 20 300 18 13342 1308 98.2 25000 80000 271 55.7
ZWBMD032032-383 12.0 14 300 13 18825 1846 25000 80000 383
ZWBMD032032-540 12.0 10 300 9 25000 2452 25000 80000 540
ZWBMD032032-763 12.0 7 300 6 25000 2452 25000 80000 762
ZWBMD032032-1076 12.0 5 300 5 25000 2452 25000 80000 1076

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

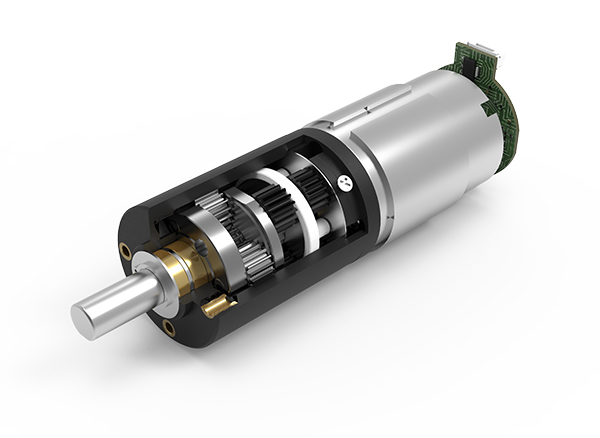

Technical Illustration
