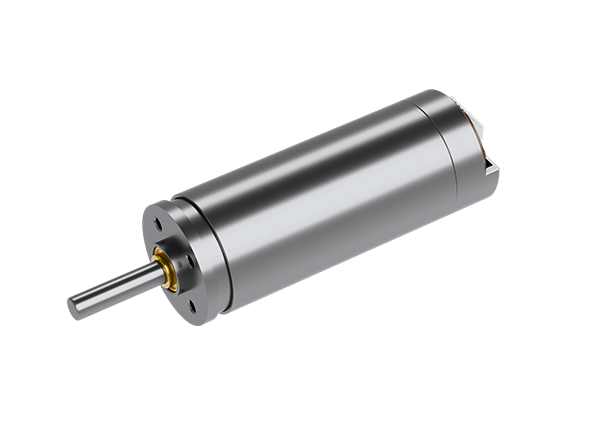

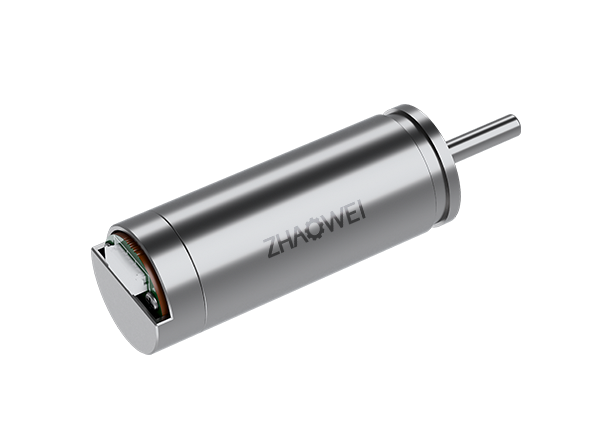

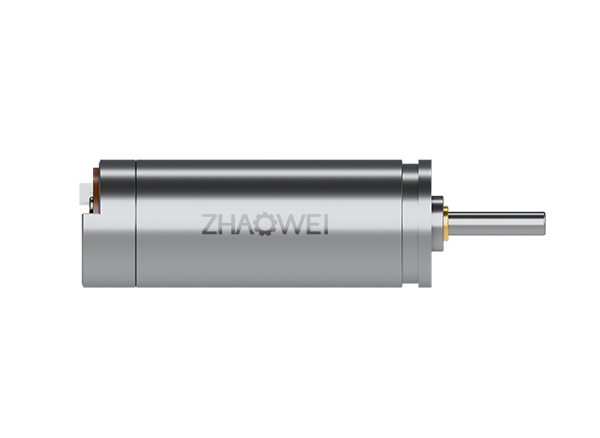

Φ16mm Spur Gearbox (Zero backlash)

PART NO.:GM20149-01

Diameter (mm):16

Length (mm):43.4

Max. Continuous Transmittable Power (W) :0.5

Max. Continuous Torque (Nm):0.1

Recommended Temperature Range(℃):-40~+80

Gearbox Technical Data

Gearbox Technical Data
Number of stages 4
Reduction Ratio 141.00
Max. continuous transmittable Power (W) 0.50
Max. intermittent transmittable power(W) 0.80
Max. continuous torque (Nm) 0.100
Max. intermittent torque (Nm) 0.13
Max. continuous input speed (rpm) 12000
Max. intermittent input speed (rPm) 15000
Max. efficiency (%) 65.00
Average backlash no load (°) 0.00
Max. axial load (dynamic)(N) 5.00
Max. radial load(6.5mm from flange)(N) 25.00
Gearbox Length L1(mm) 43.40
Weight(G) 41.00

*Note:The above specs do not include the motor; the gearbox and motor are sold as a complete unit. Specific parameters can be customized according to customer requirements.

Recommended Models

Recommended Models
PART NO. Nominal Voltage
(V)
No Load Data Load Data Overall Length
(mm)
Gearbox Max Permissible Torque
(NM)
Gearbox Max. Intermittent Torque
(NM)
Reduction Ratio Gearbox Length L1
(mm)
No-Load Speed
(rpm)
Typical No Load Current
(mA max)
Load Speed
(rpm)
Load Current
(mA Max)
Torque(Kg.cm)
gm20149-01 12 90 22 50 120 1.00 43.4 0.100 0.200 141 43.400

*The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

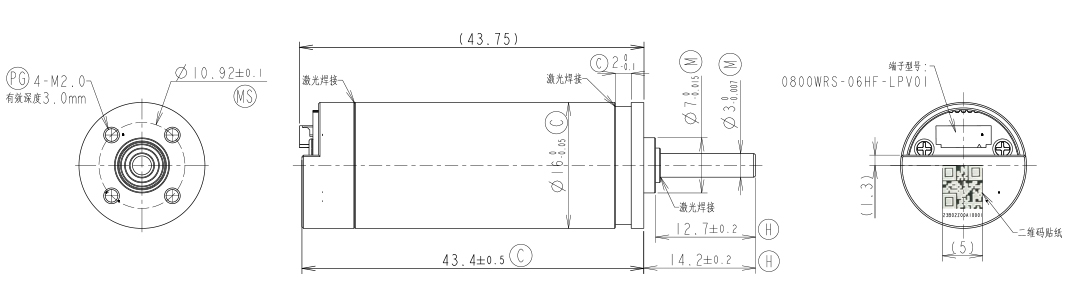

Technical Illustration
