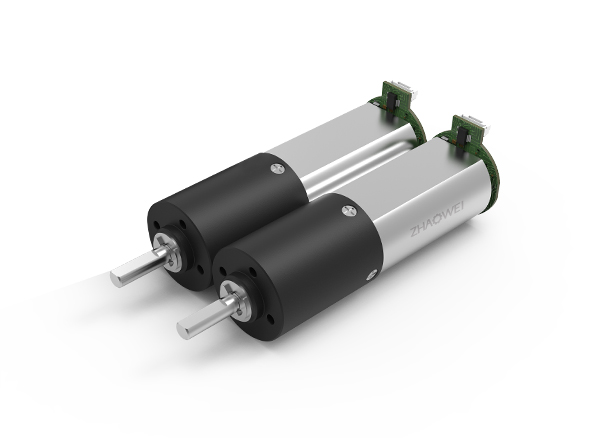

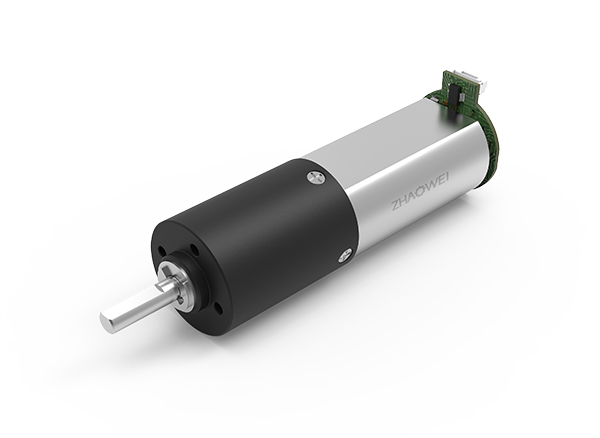

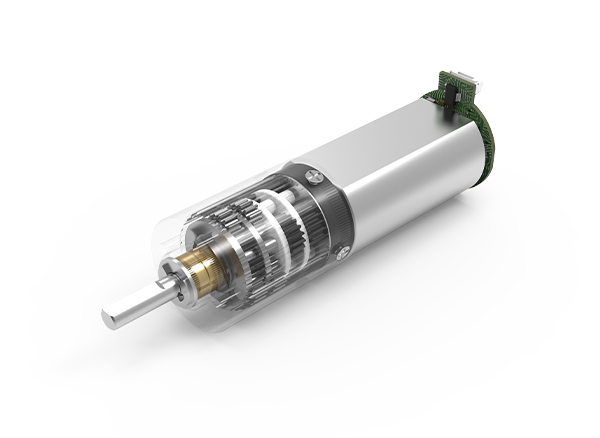

PART NO.：ZWBPD016016
Diameter (mm)：16
Length (mm)：11.5~21.4
Transmittable Power（W）：2
Max. Nominal Torque（Nm）：0.3
Recommended temperature range（℃）：-30~+70
Bearing at output：sliding bearing/rolling bearing
| Gearbox Technical Data | ||||
| Number of stages | 1 | 2 | 3 | 4 |
| Reduction Ratio | 4、6 | 16、24、36 | 64、96、144、216 | 256、384、576、864、1296 |
| Max. continuous transmittable power (W) | 2 | 2 | 2 | 2 |
| Max. intermittent transmittable power（W） | 5 | 5 | 5 | 5 |
| Max. continuous torque (Nm) | 0.3000 | 0.3000 | 0.3000 | 0.3000 |
| Max. intermittent torque (Nm) | 0.6000 | 0.6000 | 0.6000 | 0.6000 |
| Max. efficiency (%) | 85 | 75 | 65 | 55 |
| Average backlash no load (°) | 3 | 3 | 3 | 3 |
| Max. axial load (dynamic)（N） | 5 | 5 | 5 | 5 |
| Max. radial load（4mm from flange）(N) | 5 | 5 | 5 | 5 |
| Gearbox Length L1(mm) | 11.5 | 14.8 | 18.1 | 21.4 |
Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.
| PART NO. | Recommended Models | Max. Nominal Torque of Gearbox | Max. Intermittent Torque of Gearbox | Reduction Ratio | Gearbox Length L1 |
|||||||
| Nominal Voltage (V) |
No-Load Data | Load Data | Overall Length L |
|||||||||
| Speed | Current | Speed | Current | Torque | ||||||||
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm | ||
| ZWBPD016016-4 | 5.0 | 1471 | 85 | 1150 | 130 | 16 | 1.6 | 38.4 | 3000 | 6000 | 4 | 11.5 |
| ZWBPD016016-6 | 5.0 | 980 | 85 | 767 | 130 | 24 | 2.4 | 3000 | 6000 | 6 | ||
| ZWBPD016016-16 | 5.0 | 368 | 90 | 288 | 130 | 51 | 5.0 | 41.7 | 3000 | 6000 | 16 | 14.8 |
| ZWBPD016016-24 | 5.0 | 245 | 90 | 192 | 130 | 77 | 7.5 | 3000 | 6000 | 24 | ||
| ZWBPD016016-36 | 5.0 | 163 | 90 | 128 | 130 | 115 | 11.3 | 3000 | 6000 | 36 | ||
| ZWBPD016016-64 | 5.0 | 92 | 95 | 72 | 140 | 135 | 13.2 | 45 | 3000 | 6000 | 64 | 18.1 |
| ZWBPD016016-96 | 5.0 | 57 | 95 | 48 | 140 | 203 | 19.9 | 3000 | 6000 | 96 | ||
| ZWBPD016016-144 | 5.0 | 41 | 95 | 32 | 140 | 304 | 29.8 | 3000 | 6000 | 144 | ||
| ZWBPD016016-216 | 5.0 | 27 | 95 | 21 | 140 | 456 | 44.7 | 3000 | 6000 | 216 | ||
| ZWBPD016016-256 | 5.0 | 22 | 100 | 18 | 150 | 524 | 51.4 | 48.3 | 3000 | 6000 | 256 | 21.4 |
| ZWBPD016016-384 | 5.0 | 15 | 100 | 12 | 150 | 608 | 60 | 3000 | 6000 | 384 | ||
| ZWBPD016016-576 | 5.0 | 9 | 100 | 8 | 150 | 911 | 89 | 3000 | 6000 | 576 | ||
| ZWBPD016016-864 | 5.0 | 7 | 110 | 5 | 150 | 1367 | 134 | 3000 | 6000 | 864 | ||
| ZWBPD016016-1296 | 5.0 | 4 | 110 | 4 | 150 | 2050 | 201 | 3000 | 6000 | 1296 | ||
* Above specifications are subject to change without notice, just for reference and customizable according to requirements
