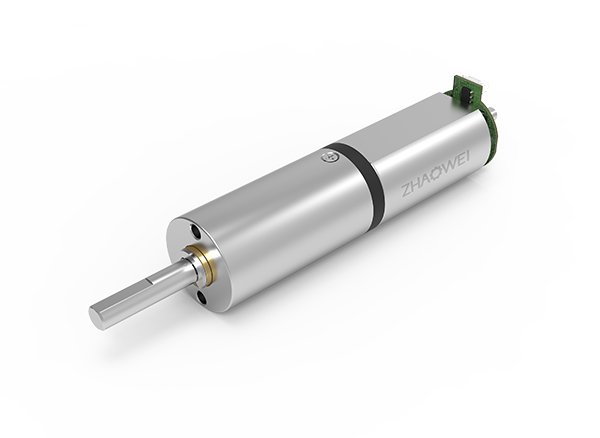

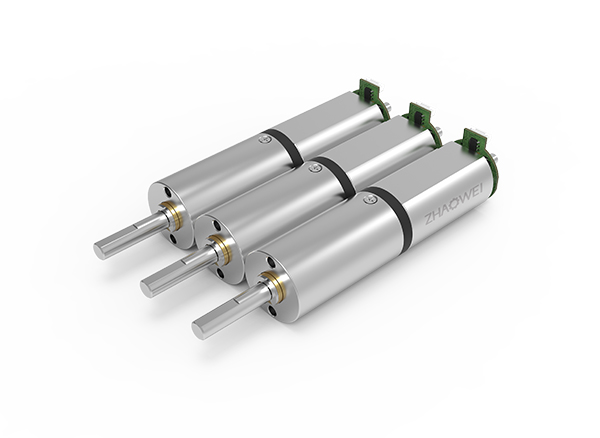

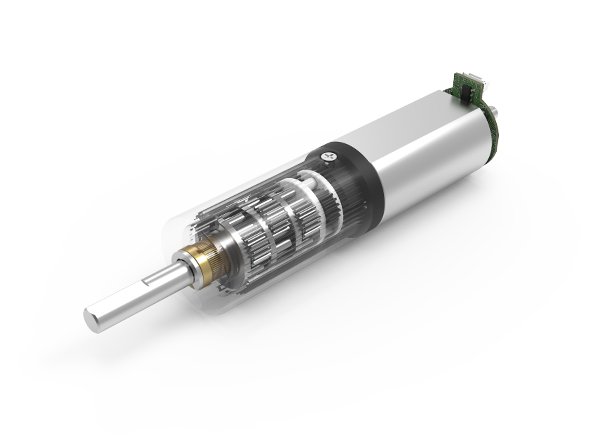

Φ12mm Planetary Gearbox(MD Series)

PART NO.:ZWMD012012

Diameter (mm):12

Length (mm):12.4~23.8

Transmittable Power(W):0.21

Max. Nominal Torque(Nm):0.0294~0.1960/p>

Recommended temperature range(℃):-35~+65

Bearing at output :sliding bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable Power (W) 0.21 0.21 0.21 0.21
Max. intermittent transmittable power(W) 0.38 0.38 0.38 0.38
Max. Nominal  Torque(Nm) 0.0294 0.0980 0.1470 0.1960
Max. Intermittent Torque (Nm) 0.0980 0.2940 0.4410 0.4900
Max. efficiency (%) 85 68 55 46
Average backlash no load (°) 3 3 3 3
Gearbox Length L1(mm) 12.4 16.2 20 23.8
Weight(G) 26 26 26 26

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Max. Nominal  Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWMD012012-4 3 2380.95 90 2050.00 255 9.00 0.88 32.4 300 1000 4 12.4
ZWMD012012-6 3 1587.30 90 1366.67 255 13.50 1.32 300 1000 6
ZWMD012012-16 3 584.11 95 512.50 255 30.60 3.00 36.2 1000 3000 16 16.2
ZWMD012012-24 3 389.41 95 341.67 255 45.90 4.50 1000 3000 24
ZWMD012012-36 3 259.61 95 227.78 255 68.85 6.75 1000 3000 36
ZWMD012012-64 3 144.68 95 128.13 260 91.80 9.00 40 1500 4500 64 20
ZWMD012012-96 3 96.45 95 85.42 260 156.06 15.30 1500 4500 96
ZWMD012012-144 3 64.30 95 56.94 260 234.09 22.96 1500 4500 144
ZWMD012012-216 3 42.87 95 37.96 260 351.14 34.44 1500 4500 216
ZWMD012012-256 3 36.17 100 32.03 260 353.74 34.69 43.8 2000 5000 256 23.8
ZWMD012012-384 3 24.11 100 21.35 260 530.60 52.04 2000 5000 384
ZWMD012012-576 3 16.08 100 14.24 260 795.91 78.05 2000 5000 576
ZWMD012012-864 3 10.72 100 9.49 260 1193.86 117.08 2000 5000 864
ZWMD012012-1296 3 7.14 100 6.33 260 1790.79 175.62 2000 5000 1296

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

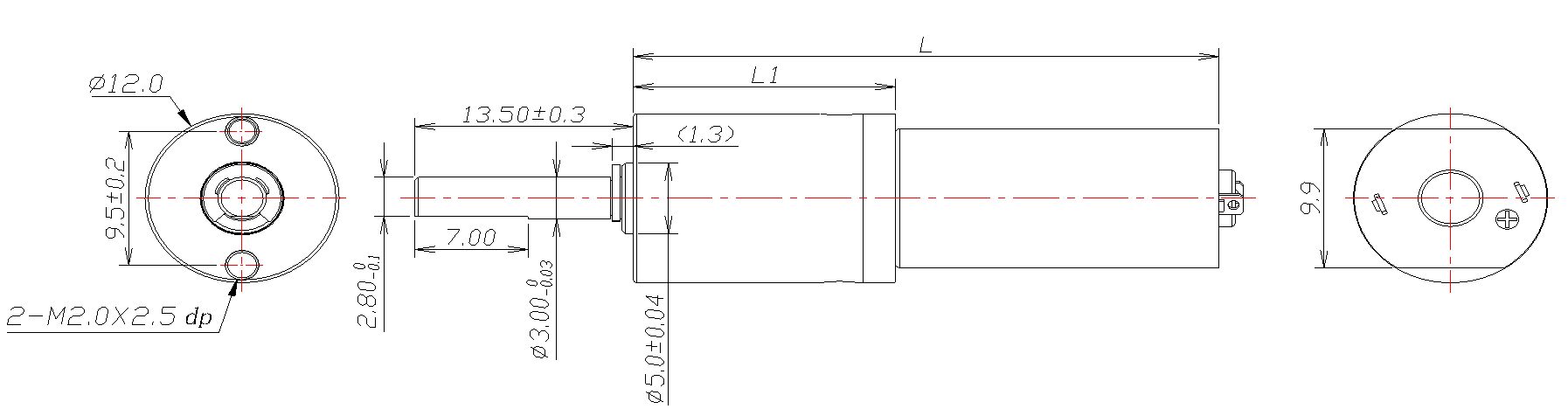

Technical Illustration
