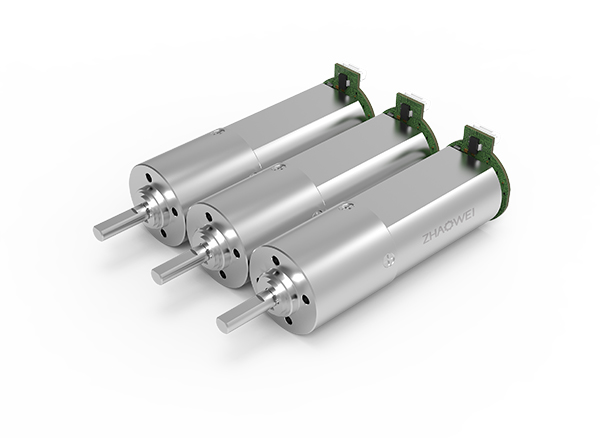

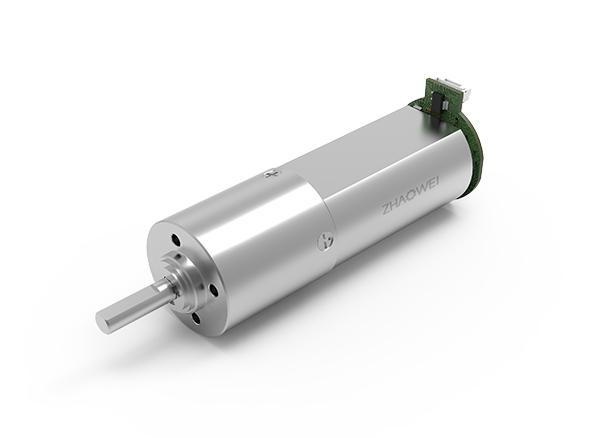

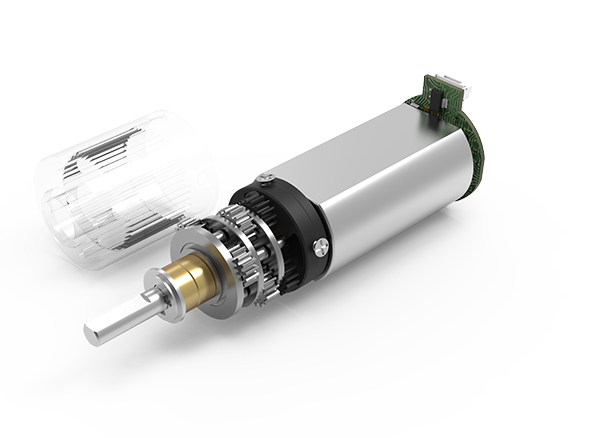

Φ16mm Planetary Gearbox(MD Series)

PART NO.:ZWBMD016016

Diameter (mm):16

Length (mm):11.5~21.4

Transmittable Power(W):2

Max. Nominal Torque(Nm):0.5

Recommended temperature range(℃):-30~+70

Bearing at output :sliding bearing/rolling bearing

Gearbox Technical Data

Stages 1 2 3 4
Reduction Ratio 4、6 16、24、36 64、96、144、216 256、384、576、864、1296
Max. continuous transmittable Power (W) 2 2 2 2
Max. intermittent transmittable power(W) 5 5 5 5
Max. Nominal  Torque(Nm) 0.5000 0.5000 0.5000 0.5000
Max. Intermittent Torque (Nm) 1.0000 1.0000 1.0000 1.0000
Max. efficiency (%) 85 75 65 55
Average backlash no load (°) 3 3 3 3
Max. axial load (dynamic)(N) 5 5 5 5
Max. radial load(4mm from flange)(N) 5 5 5 5
Gearbox Length L1(mm) 11.5 14.8 18.1 21.4

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD016016-4 5 1470.588235 85 1150 130 16 1.56912 38.4 5000 10000 4 11.5
ZWBMD016016-6 5 980.3921569 85 766.6666667 130 24 2.35368 5000 10000 6
ZWBMD016016-16 5 367.6470588 90 287.5 130 51.2 5.021184 41.7 5000 10000 16 14.8
ZWBMD016016-24 5 245.0980392 90 191.6666667 130 76.8 7.531776 5000 10000 24
ZWBMD016016-36 5 163.3986928 90 127.7777778 130 115.2 11.297664 5000 10000 36
ZWBMD016016-64 5 91.91176471 95 71.875 140 135 13.23945 45 5000 10000 64 18.1
ZWBMD016016-96 5 56.81818182 95 47.91666667 140 202.5 19.859175 5000 10000 96
ZWBMD016016-144 5 40.8496732 95 31.94444444 140 303.75 29.7887625 5000 10000 144
ZWBMD016016-216 5 27.23311547 95 21.2962963 140 455.625 44.68314375 5000 10000 216
ZWBMD016016-256 5 22.32142857 100 17.96875 150 524.288 51.41692416 48.3 5000 10000 256 21.4
ZWBMD016016-384 5 14.88095238 100 11.97916667 150 607.5 59.577525 5000 10000 384
ZWBMD016016-576 5 9.426847662 100 7.986111111 150 911.25 89.3662875 5000 10000 576
ZWBMD016016-864 5 6.613756614 110 5.324074074 150 1366.875 134.0494313 5000 10000 864
ZWBMD016016-1296 5 4.409171076 110 3.549382716 150 2050.3125 201.0741469 5000 10000 1296

* Above specifications are subject to change without notice, just for reference and customizable according to requirements

Technical Illustration
