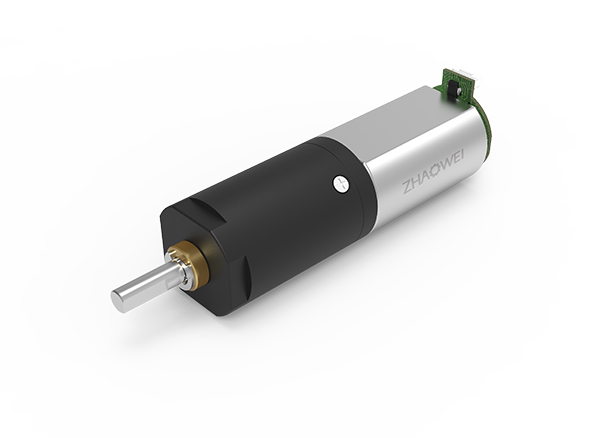

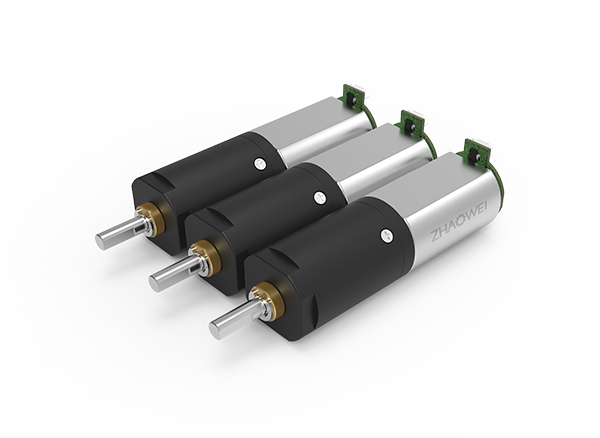

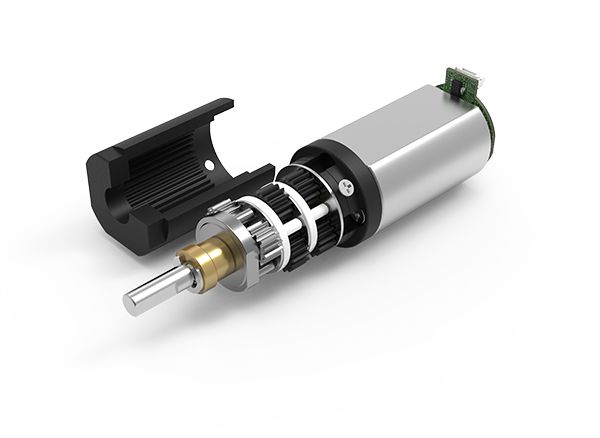

Φ10mm Planetary Gearbox (PD Series)

PART NO.:ZWBPD010010

Diameter (mm):10

Length (mm):9.7~19

Transmittable Power(W):0.2

Max. Nominal Torque(Nm):0.13

Recommended temperature range(℃):-20~+85

Bearing at output:sleeve bearing/ball bearing

Gearbox Technical Data

Gearbox Technical Data
Number of stages 2 3 4
Reduction Ratio 13、19、28 46、69、102、151 168、249、368、546、809
Max. continuous transmittable power (W) 0.2 0.2 0.2
Max. intermittent transmittable power(W) 0.5 0.5 0.5
Max. continuous torque (Nm) 0.13 0.13 0.13
Max. intermittent torque (Nm) 0.4 0.4 0.4
Max. efficiency (%) 76 66 57
Average backlash no load (°) 2.5 2.5 2.5
Max. axial load (dynamic)(N) 1 1 1
Max. radial load(4mm from flange)(N) 7 7 7
Gearbox Length L1(mm) 12.8 15.9 19
Weight(G) 8 8 8

Note: The above data excludes the motor. The gearbox and motor are sold as a complete unit, and specific parameters can be customized based on customer requirements.

Recommended Models

PART NO. Recommended Models Max. Nominal Torque of Gearbox Max. Intermittent Torque of Gearbox Reduction Ratio Gearbox Length
L1
Nominal Voltage
(V)
No-Load Data Load Data Overall Length
L
Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
ZWBPD010010-3 3.0 4318 130 3625 215 6 0.6 24.7 1300 4000 4 9.7
ZWBPD010010-5 3.0 2879 130 2417 215 10 0.9 1300 4000 6
ZWBPD010010-13 3.0 1329 130 1115 215 17 1.6 27.8 1300 4000 13 12.8
ZWBPD010010-19 3.0 909 130 763 215 24 2.4 1300 4000 19
ZWBPD010010-28 3.0 617 130 518 215 36 3.5 1300 4000 28
ZWBPD010010-46 3.0 375 140 315 215 39 3.8 30.9 1300 4000 46 15.9
ZWBPD010010-69 3.0 250 140 210 215 58 5.7 1300 4000 69
ZWBPD010010-102 3.0 169 140 142 215 86 8.4 1300 4000 102
ZWBPD010010-151 3.0 114 140 96 215 127 12.5 1300 4000 151
ZWBPD010010-168 3.0 98 140 86 220 106 10.4 34 1300 4000 168 19
ZWBPD010010-249 3.0 66 140 58 220 158 15 1300 4000 249
ZWBPD010010-368 3.0 45 140 39 220 233 23 1300 4000 368
ZWBPD010010-546 3.0 30 140 27 220 346 34 1300 4000 546
ZWBPD010010-809 3.0 20 140 18 220 512 50 1300 4000 809

* above specifications are subject to change without notice, just for reference and customizable according to requirements.

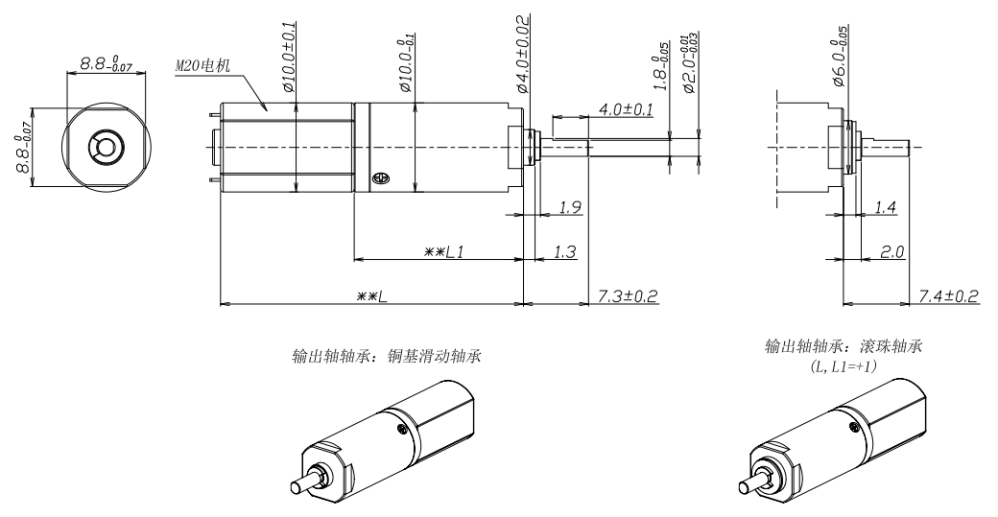

Technical Illustration
