ZHAOWEI 3.4mm, 4mm and 6mm small planetary gearbox drive systems can be used with the motor reduction of full-screen mobile phone cameras. The camera can rotate to the front and back, to different angles, pop up, etc.
Challenges
On a full-screen mobile phone, where should the camera be placed?
Project Introduction
ZHAOWEI offers gear motor camera phones often used (3.4mm, 4mm, and 6mm) for the rotation and lifting of full-screen mobile phones, making it possible for the camera to rotate to the front or back, different angles, pop-ups, etc.
Feature 1

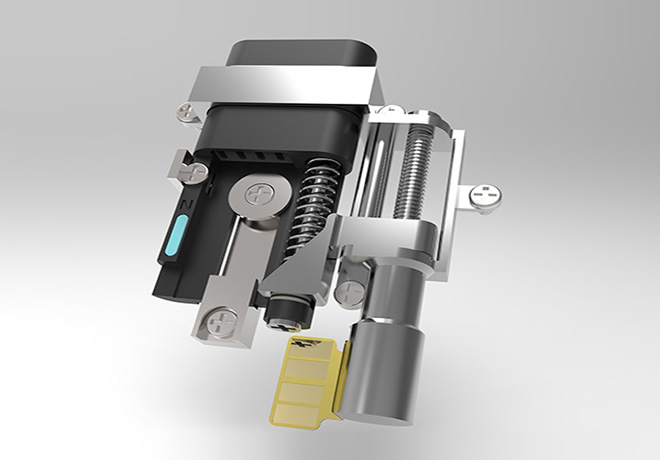

The front camera is hidden in the screen. Lenses are often a necessity, so the first half of the lens must be very small. ZHAOWEI has adopted a 3.4mm stepper motor camera phone to provide the power source and a 4mm planetary gearbox (reducer) to reduce the high-speed output by the motor, thus reducing speed and increasing torque.
Feature 2
Remove the front camera and enable the back camera to rotate and lift. How can the front camera be hidden? It follows the same concept as the phone’s side-mounted fingerprint sensor. Specifically, we’ve used a mechanical device to turn the front camera of the phone into the rear camera, or the other way around. This system is not only convenient but also improves photo quality.
Feature 3

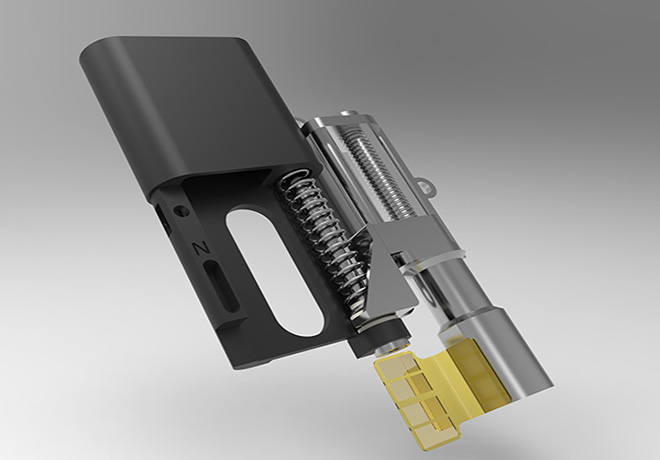

Full-screen phones with curved surfaces come into sight. What is used here is the worm planetary gearbox technology in the drive system of the lifting camera. Applying the tailor-made planetary gearbox with the micro stepper motor to the camera enables phone cameras with any screen to rotate without taking up space.
In addition to the all-screen phone camera, we also provide solutions for base station smart cabinet lock, base station antenna, smart energy meter, PTZ camera, phone rotating camera, Pan&Tilt Heads, VR headset, and video conference equipment.
