Thumb Parallel Linear Actuator

Voltage：12V

Gear Ratio：4

Actuator Weight：40 g

No-load Current:：0.1±15% A

No-load Travel Speed：75±15% mm/s

Maximum Stroke：7 mm

Rated Push/Pull Force： 30±15% N

Contact

Actuator Parameter

Actuator Parameter
Gearbox Stages Stage 2
Voltage 12V
No-load Current 0.1±15% A
No-load Travel Speed 75±15% mm/s
Maximum Stroke 7 mm
Rated Push/Pull Force 30±15% N
Rated Current 0.45±15% A
Rated Travel Speed 54±15% mm/s
Instantaneous Push/Pull Force (Max) 90 N
Gear Ratio 4
Overall Dimensions 12*24 mm
Actuator Length 28 mm
Recommended Operating Temperature Range -40~+85 ℃
Actuator Weight 40 g

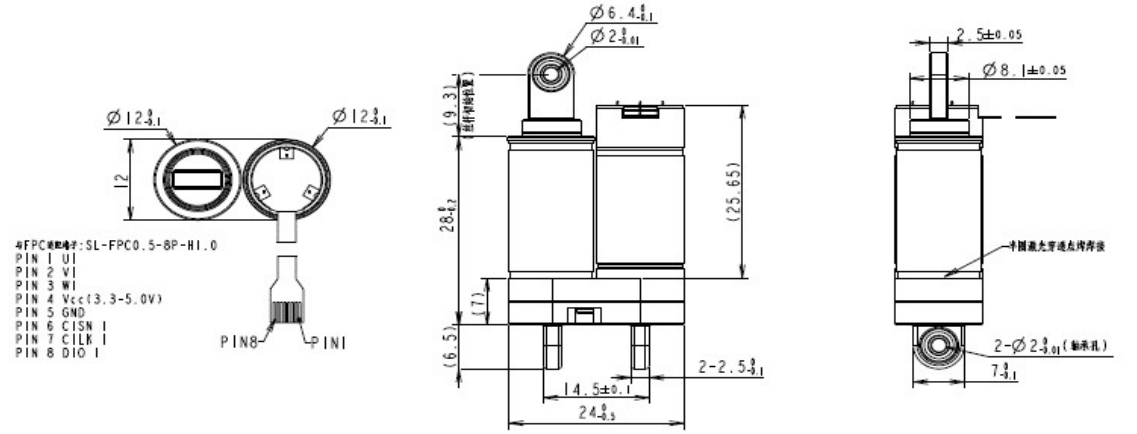

Technical Illustration
