ZWSMD Φ4mm ZWSMD Φ6mm ZWSMD Φ8mm ZWSMD Φ10mm ZWSMD Φ12mm ZWSMD Φ16mm ZWSMD Φ19mm ZWSMD Φ22mm ZWSMD Φ26mm ZWSMD Φ32mm ZWSMD Φ38mm ZWSMD Φ42mm
ZWMD Φ3.4mm ZWMD Φ4.3mm ZWMD Φ6mm ZWMD Φ8mm ZWMD Φ10mm ZWMD Φ12mm ZWMD Φ16mm ZWMD Φ20mm ZWMD Φ22mm ZWMD Φ24mm ZWMD Φ28mm ZWMD Φ32mm ZWMD Φ38mm
Material: Plastic/Metal(customizable)
Voltage: 6-24V
Rated Speed: 5-2000rpm
Reduction Ratio: 5-1500
The direction of Rotation: cc&ccw

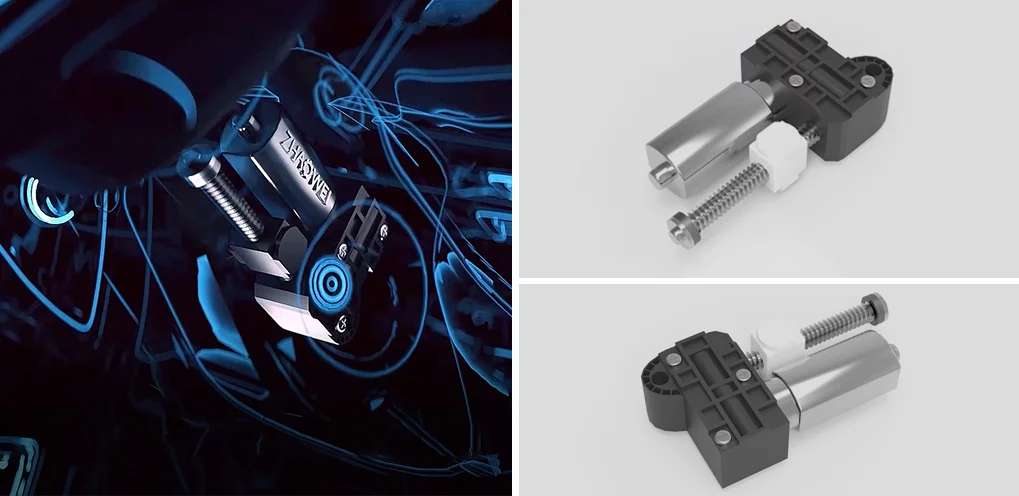

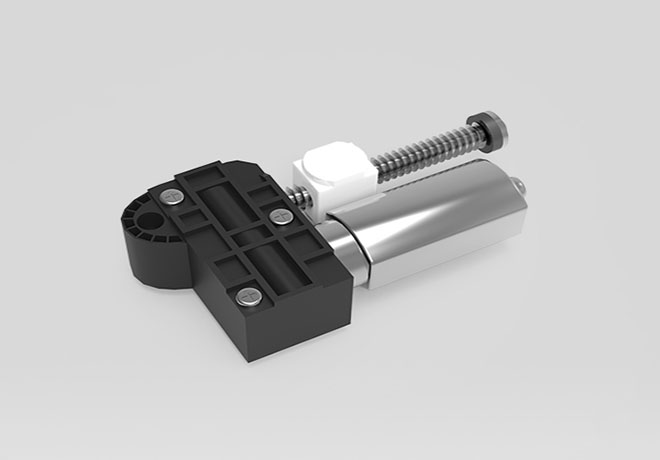

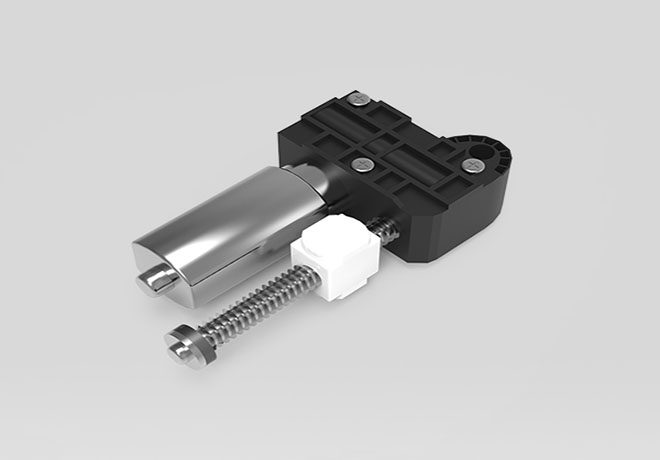

The electric power steering system generally consists of torque sensors, electronic control units (ECU), motors, and mechanical steering gears. The power generated by EPS depends on the size of the motor, the current, and the gear ratio of the gearbox. The ZHAOWEI gear motor for the EPS systems provides higher stability and reliability and is suitable for the automobile industry.
Through the analysis and design of the electrical power steering gearbox, ZHAOWEI adjusts the structure of the gearbox and improves the precision of the gear. The gear-assisted EPS motor is connected to the micro gear of the speed reduction mechanism to directly drive the gear-assist steering, so the EPS can reduce the dynamics and angle changes that rugged terrain feeds back to the steering wheel, reducing the sensitivity and improving the stability of the vehicle without shaking.
ZHAOWEI’s micro drive systems apply in diverse areas all around the world to deliver the power, precision, and efficiency to motion solutions. Our sales and engineering support teams are ready to assist you with any questions, including quotation, application support, and product configuration. Please submit your requirements through our Custom Service Form to ensure a faster response.
