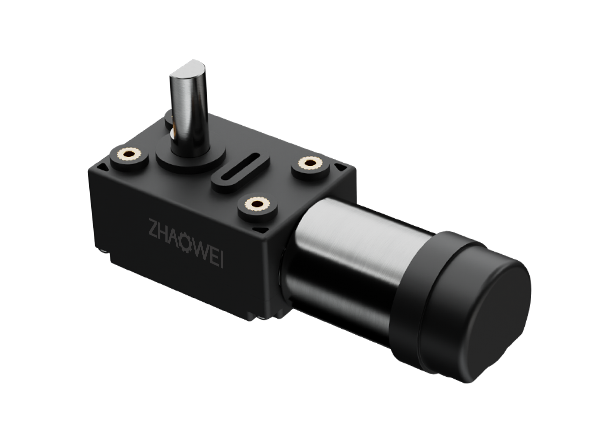

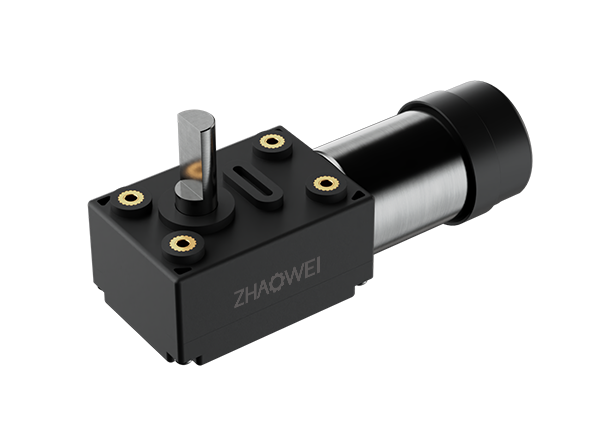

4632 Right-Angle Gear Motor(PL Series)

PART NO.:ZWPL4632

Dimension (mm):46*32*24.5

Max. Transmittable Power (W) :5.3

Max. Continuous Torque (Nm):5.3

Recommended Temperature Range(℃):-30~+100

Bearing at Output:sliding bearing/ball bearing

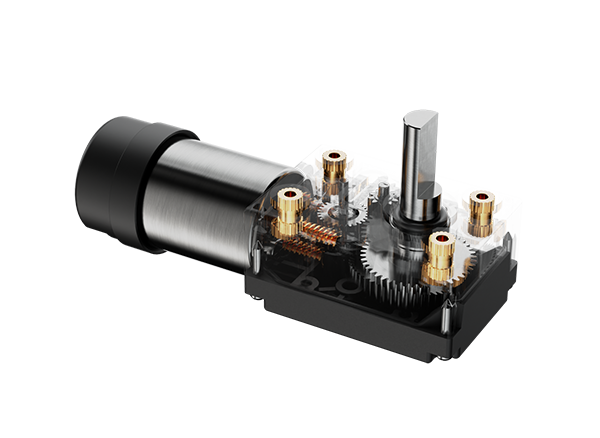

Gearbox Technical Data

Gearbox Technical Data
Number of stages 4 5
Reduction Ratio 59.03、104.53、136.89 246.5、324.45、424.87、601.75、788.01、1037.21
Max. continuous transmittable Power (W) 5.3 2.3
Max. intermittent transmittable power(W) 6.4 2.8
Max. continuous torque (Nm) 1.63 2.55
Max. intermittent torque (Nm) 6.53 10.20
Max. efficiency (%) 49 39
Average backlash no load (°) 3 3
Weight(G) 120 130

*Note:The above specs do not include the motor; the gearbox and motor are sold as a complete unit. Specific parameters can be customized according to customer requirements.

Recommended Models

Recommended Models
PART NO. Voltage range Nominal No Load Data Load Data Overall Length (mm) Gearbox Max. Continuous Torque
(kgf.cm)
Gearbox Max. Intermittent Torque(kgf.cm) Reduction Ratio Gearbox Length L1
(mm)
Voltage (VDC) Voltage (VDC) No-Load Speed
(rpm)
No Load Current
(mA)
Load Speed
(rpm)
Load Current
(A )
Torque(kgf.cm) Torque (N.M)
ZWPL4632-60-01 8—30 12 95 600 82 1.09 4.0 0.39 30.8 4.4 17.6 59.00 89.9
ZWPL4632-100-01 8—30 12 54 600 42 1.53 11.2 1.10 30.8 12 48 104.50 89.9
ZWPL4632-140-01 8—30 12 41 600 32 1.48 14.6 1.43 30.8 16 64 136.90 89.9
ZWPL4632-250-01 8—30 12 23 600 19 1.16 15.5 1.52 30.8 16 64 246.50 89.9
ZWPL4632-320-01 8—30 12 17 600 15 0.95 16.2 1.59 30.8 16 64 324.50 89.9
ZWPL4632-420-01 8—30 12 13 600 12 0.90 20.0 1.96 30.8 20 64 424.90 89.9
ZWPL4632-600-01 8—30 12 9 600 8 0.81 25.0 2.45 30.8 27 108 601.80 89.9
ZWPL4632-790-01 8—30 12 7 600 7 0.64 25.0 2.45 30.8 27 108 788.00 89.9
ZWPL4632-1040-01 8—30 12 5 600 5 0.49 25.0 2.45 30.8 30 120 1037.20 89.9

*The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

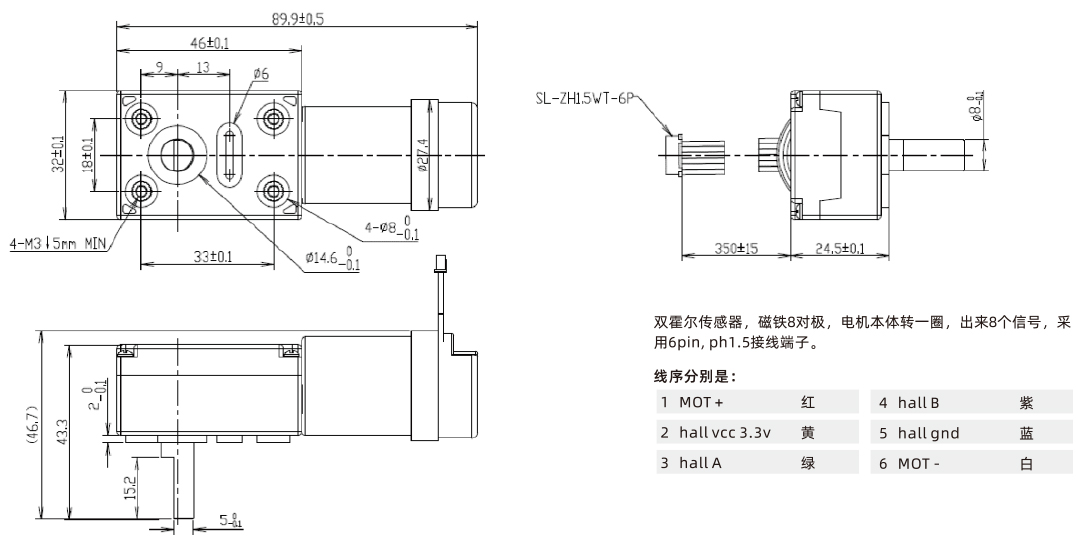

Technical Illustration
