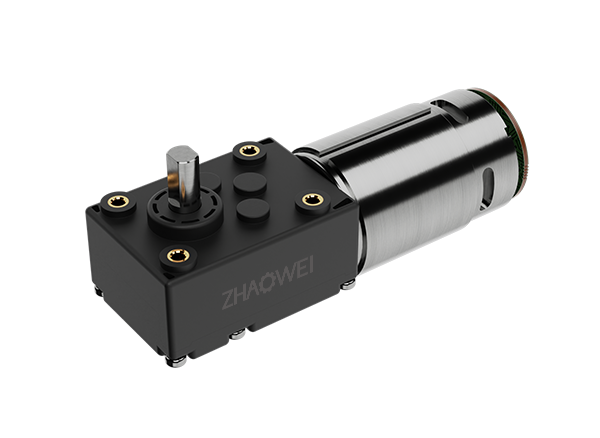

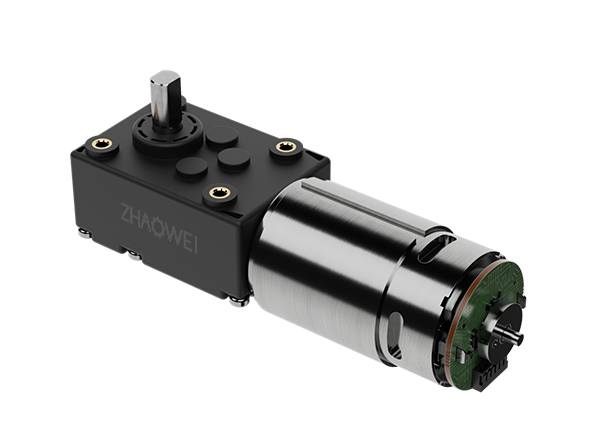

5840 Right-Angle Gear Motor(PL Series)

PART NO.:ZWPL5840

Dimension (mm):58*40*27

Max. Transmittable Power (W) :7.5

Max. Continuous Torque (Nm):6.5

Recommended Temperature Range(℃):-30~+100

Bearing at Output:sliding bearing/ball bearing

Gearbox Technical Data

Gearbox Technical Data

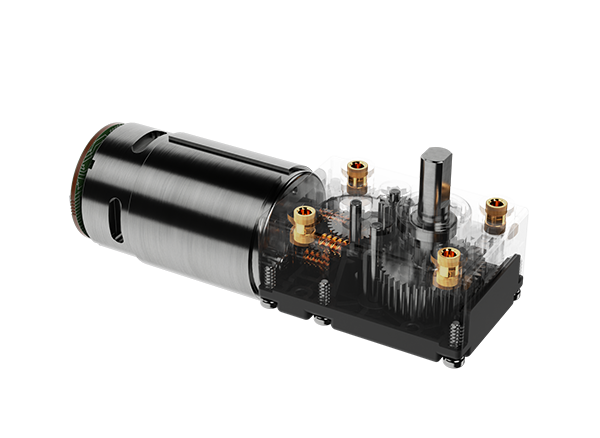

Number of stages 4 5
Reduction Ratio 57.4、100.88、131.81 244.72、321.26、419.74、595.85、778.48、1030.77
Max. continuous transmittable Power (W) 7.5 5.9
Max. intermittent transmittable power(W) 9 7.1
Max. continuous torque (Nm) 4.50 6.50
Max. intermittent torque (Nm) 18 26
Max. efficiency (%) 49 39
Average backlash no load (°) 3 3
Weight(G) 340 340

*Note:The above specs do not include the motor; the gearbox and motor are sold as a complete unit. Specific parameters can be customized according to customer requirements.

Recommended Models

Recommended Models
PART NO. No Load Data Load Data Overall Length (mm) Gearbox Max. Continuous Torque
(kgf.cm)
Gearbox Max. Intermittent Torque(kgf.cm) Reduction Ratio Gearbox Length L1
(mm)
No Load Current
(mA)
Load Speed
(rpm)
Load Current
(A )
Torque(kgf.cm) Torque (N.M)
ZWPL5840-60-01 450 90 2.80 7.9 0.77 57.0 14.00 56 57.40 129
ZWPL5840-100-01 450 51 2.80 13.8 1.36 57.0 45.00 180 100.90 129
ZWPL5840-130-01 450 39 2.80 18.1 1.77 57.0 45.00 180 131.80 129
ZWPL5840-240-01 450 21 2.80 27.2 2.66 57.0 48.00 192 244.70 129
ZWPL5840-320-01 450 16 2.80 35.7 3.50 57.0 48.00 192 321.30 129
ZWPL5840-420-01 450 12 2.30 40.0 3.92 57.0 48.00 192 419.70 129
ZWPL5840-600-01 450 9 2.30 40.1 3.93 57.0 55.00 220 595.90 129
ZWPL5840-780-01 450 7 2.30 40.1 3.93 57.0 55.00 220 778.50 129
ZWPL5840-1030-01 450 5 2.30 40.2 3.94 57.0 65.00 260 1030.80 129

*The specifications above are for reference only. Changes may occur without prior notice. For specific requirements, please contact customer service.

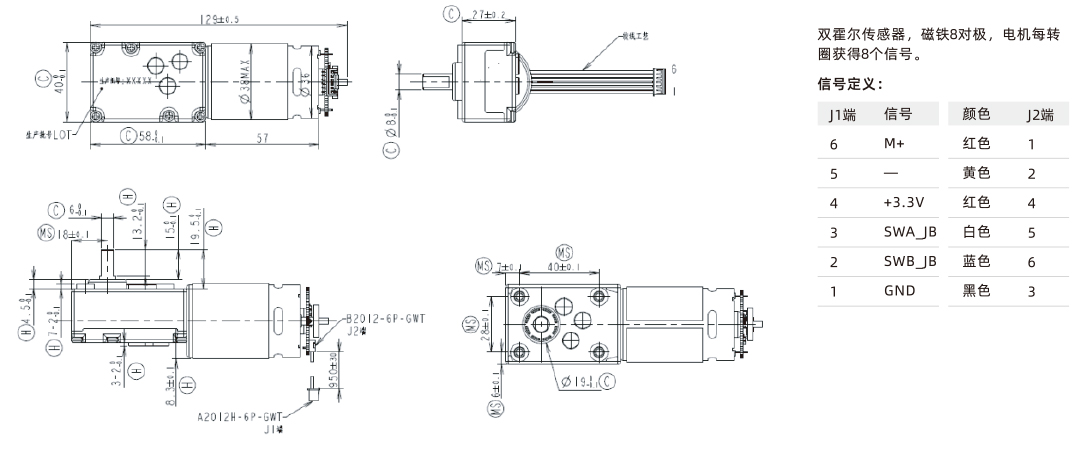

Technical Illustration
